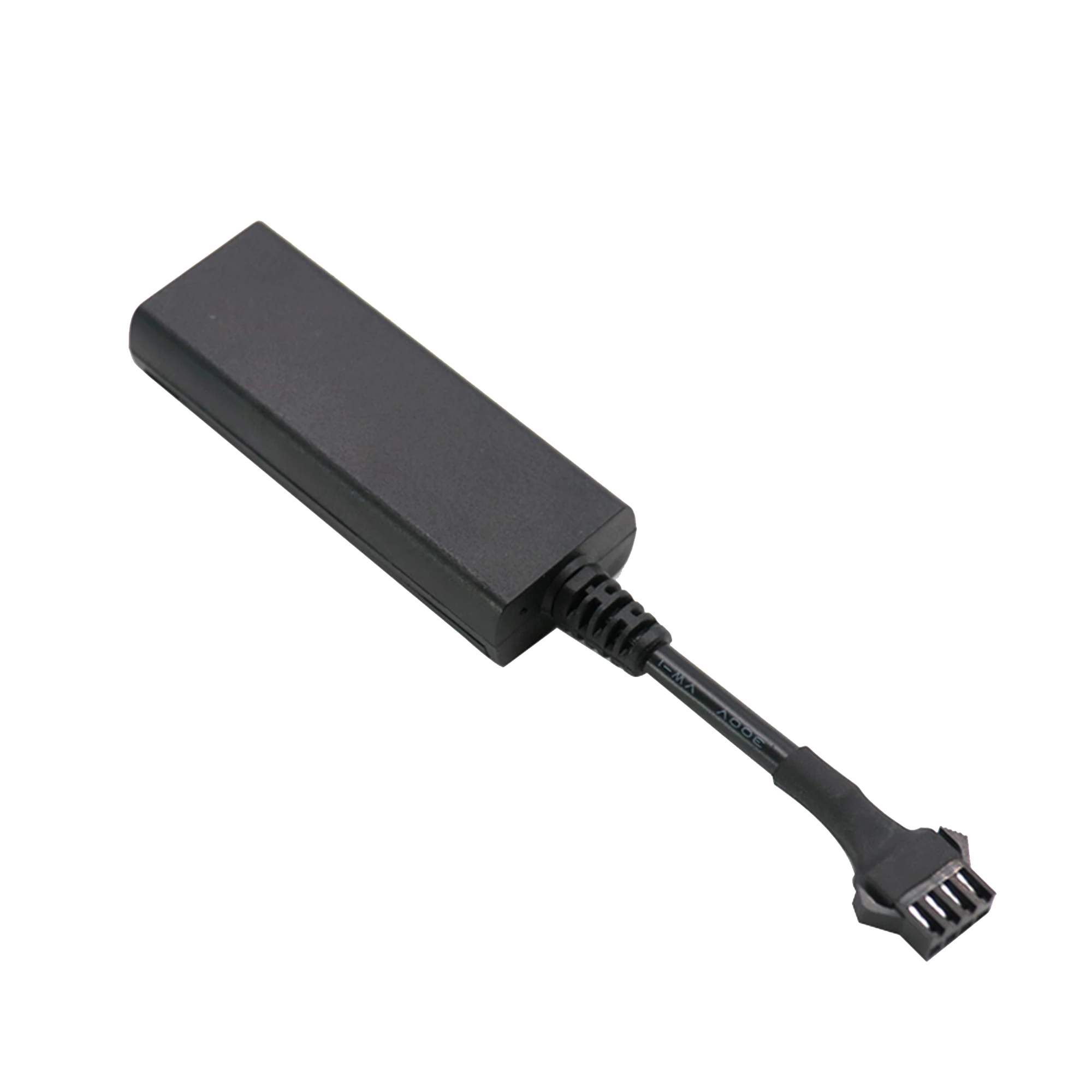

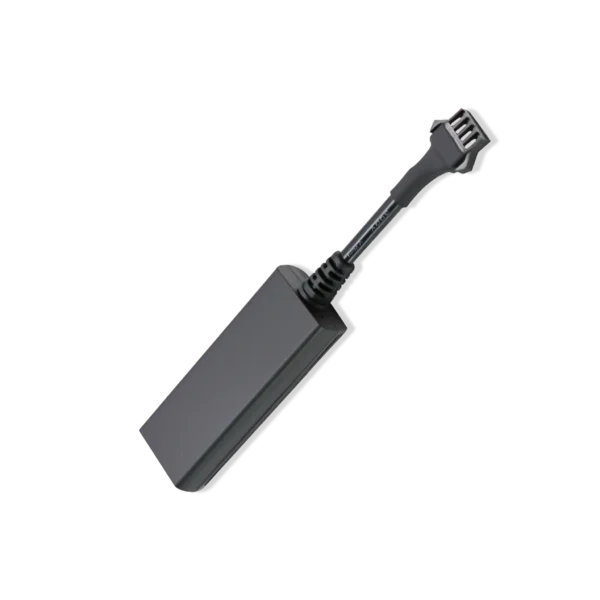

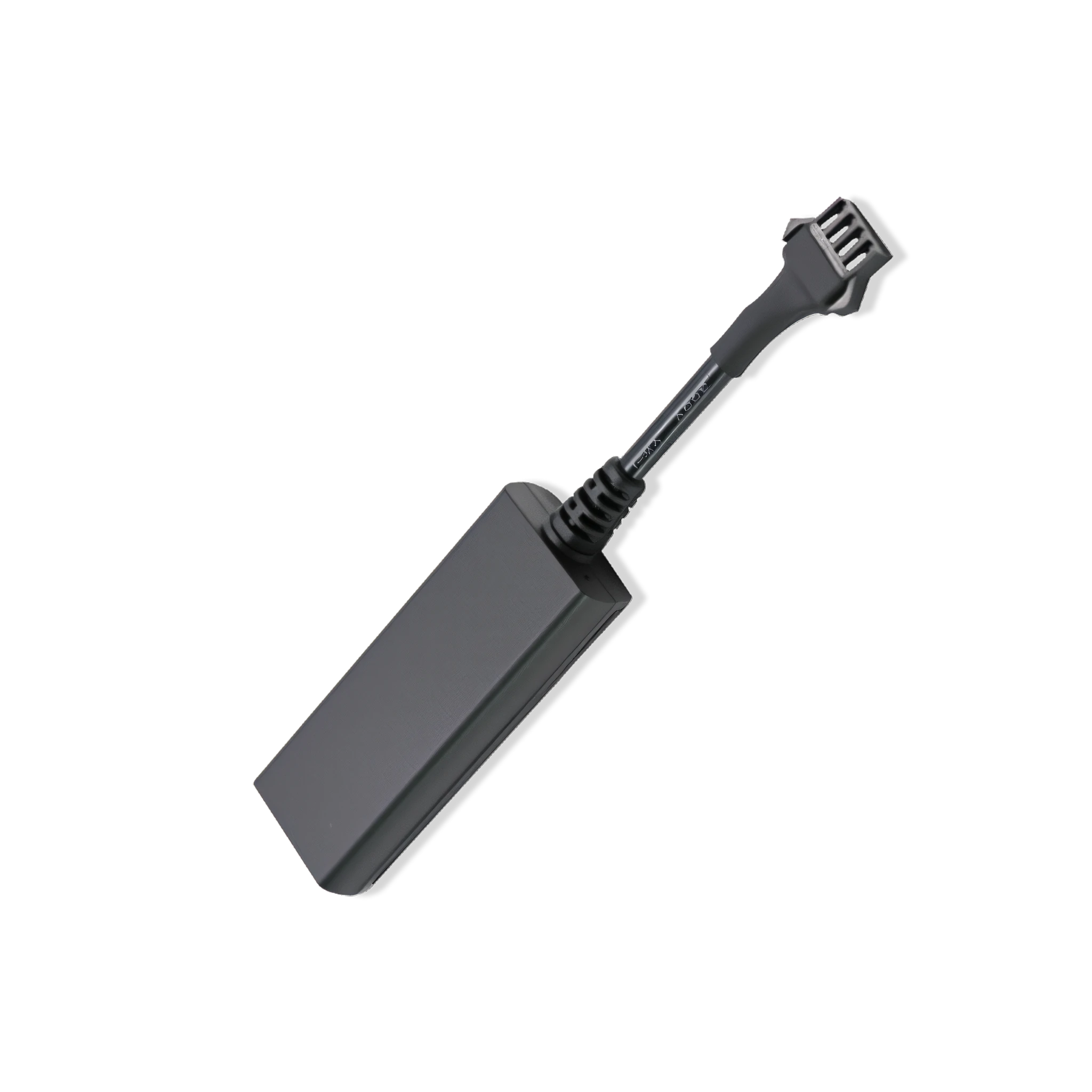

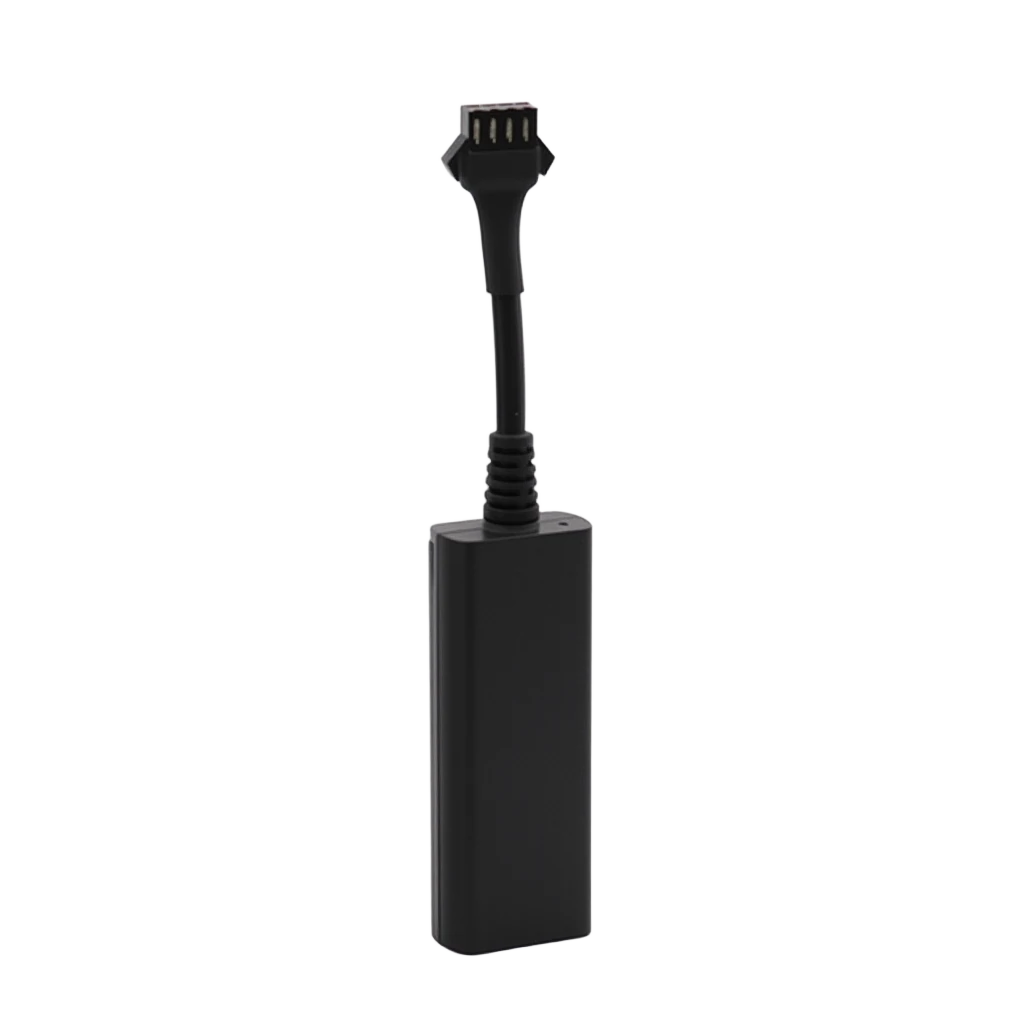

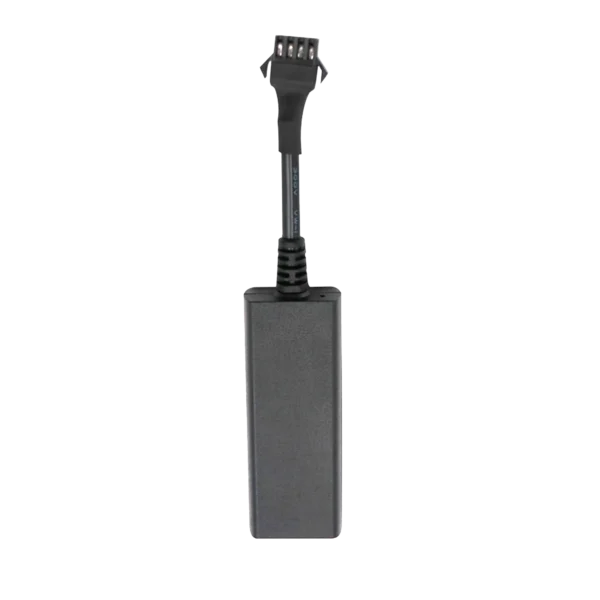

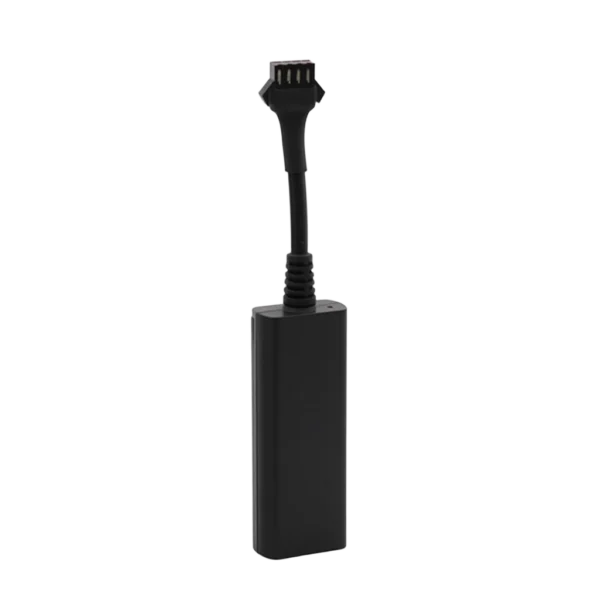

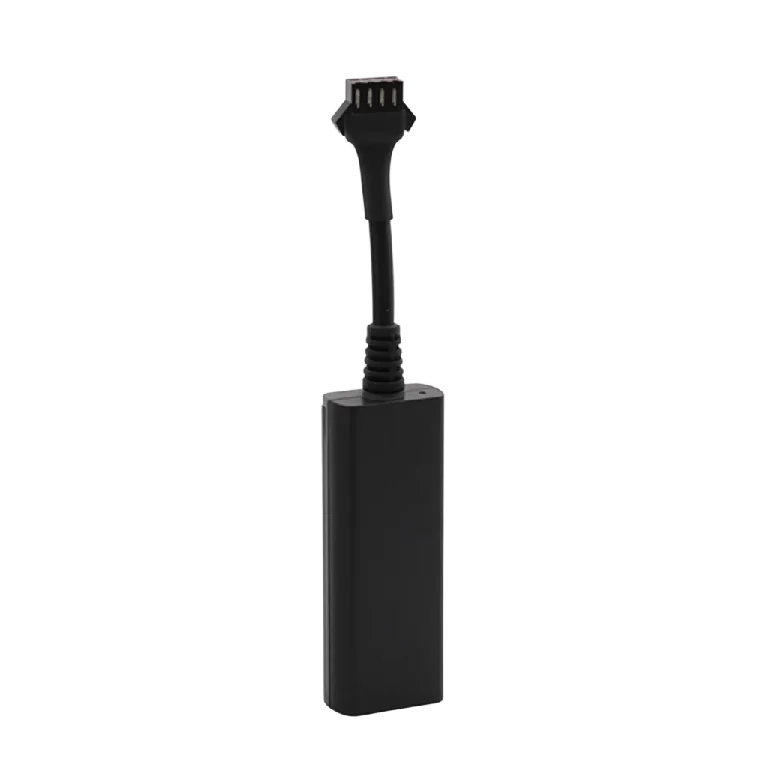

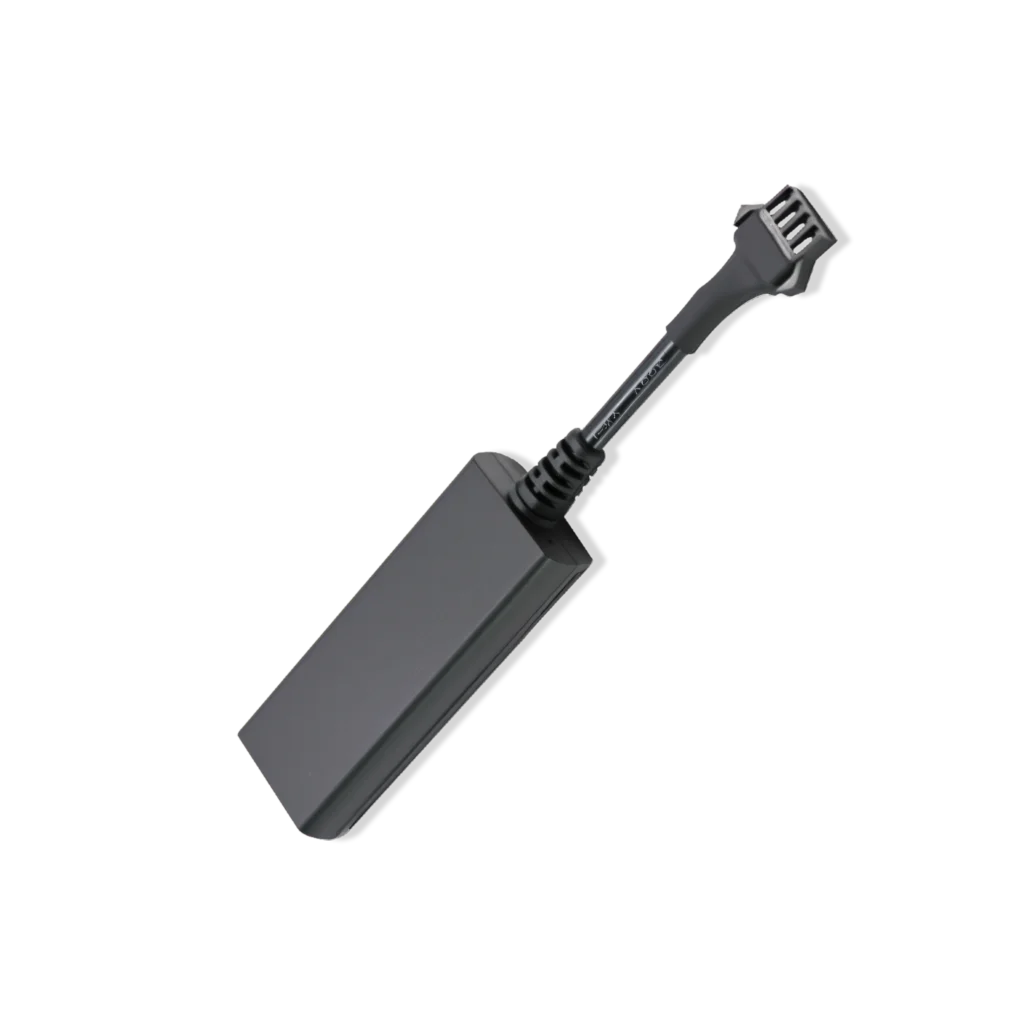

Mini GPS Tracker TR05 | GreatWill
Great-wil GPS for various vehicles 9-90V，TR05 2G GPS tracker is a perfect solution for those who want to start their trackingcenter with a reduced initial cost.It is the most popular compact 2G model for basic realtimetracking,historical routes playback.
● Multiple Positioning Modes--GPS+BDS+LBS
● Accuracy Position--<10m
● Remote Control Engine
● Real Time Tracking Positioning
Small Size, High Precision--TR05
TR05 integrates 2G full Netcom wireless communication technology and GPS/BDS satellite navigation and positioning technology. Sensor, intelligent power saving wake-up work. With DC detection, ACC detection, vibration alarm, power failure alarm, overspeed alarm and other functions.

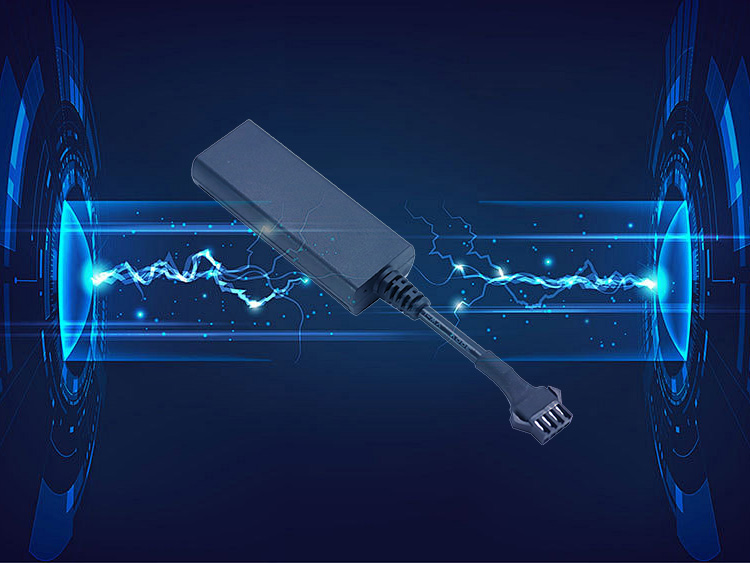

Universal 9-100V Voltage Range
Engineered for maximum fleet flexibility. Our tracker seamlessly integrates with motorcycles, cars, and heavy-duty trucks, simplifying procurement and deployment.

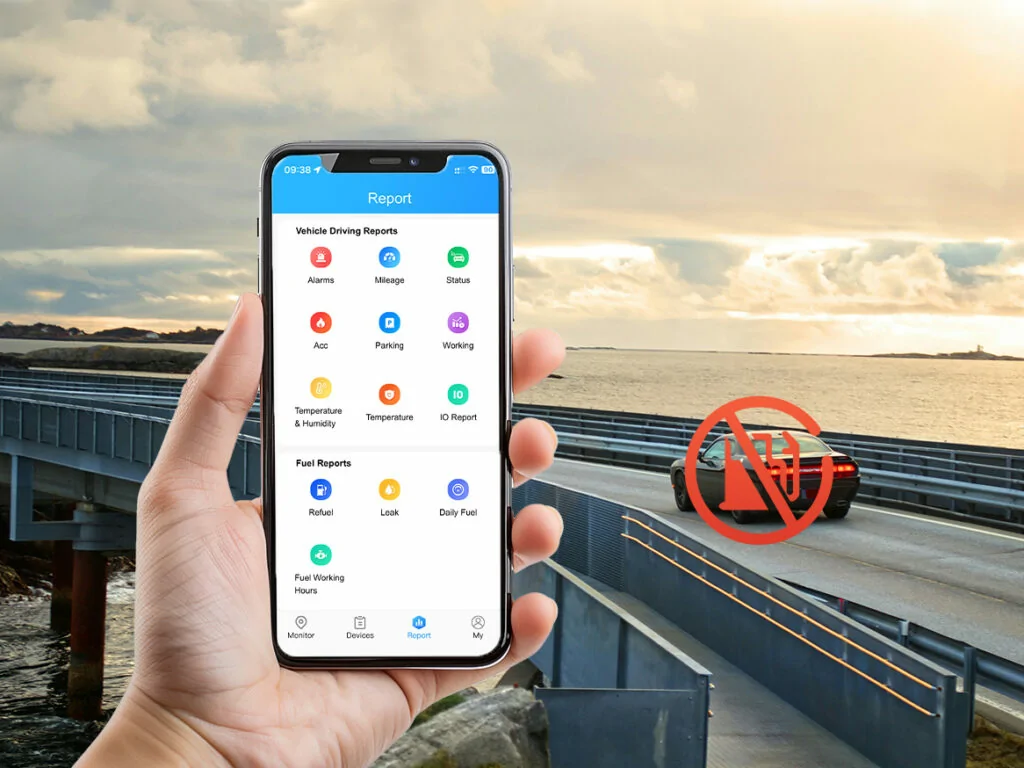

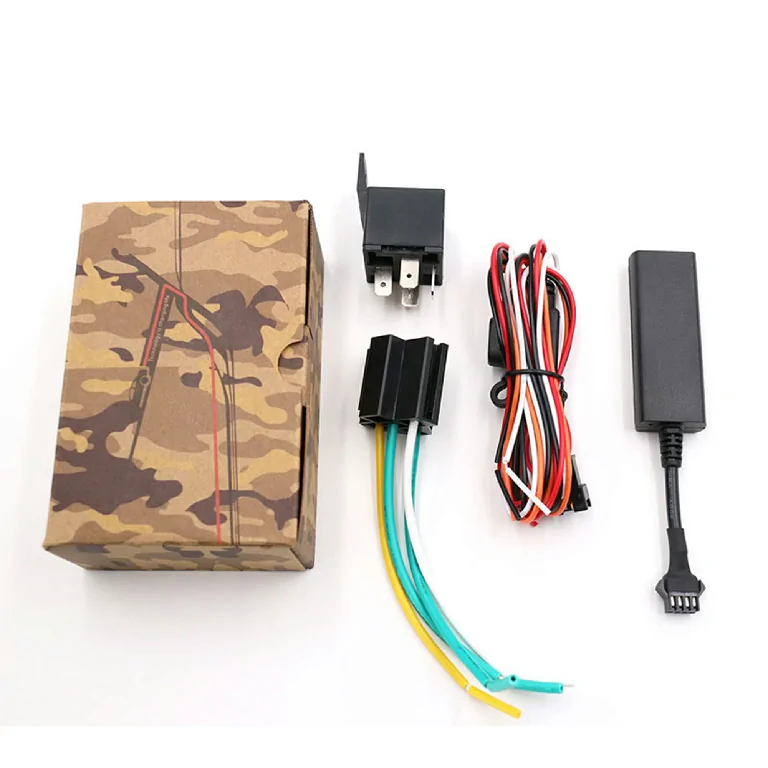

Remote Fuel/Power Cut-Off
Enhance asset security with remote immobilization. Safely disable a vehicle’s engine via a simple command, preventing theft and unauthorized use of your assets.
Dual-Mode GPS + Beidou Positioning
Leverages both GPS and Beidou satellite systems for superior accuracy and reliable live tracking, ensuring consistent location data even in challenging areas.
Intelligent ACC & Power Management
Monitors ignition status for precise trip logging and utilizes ultra-low standby power to protect vehicle battery life during long periods of inactivity.
Technical Specifications
| Specification | TR05 |
| Network Frequency | 850/900/1800/1900MHz |
| Positioning Way | GPS + Beidou |
| Location Accuracy | 10m (2D RM) |
| Working Voltage |
9V - 100V DC
|
| Dimensions | 65 x 25 x 13 mm |
| Weight |
27g
|
| Working Temperature | -20°C to +70°C (-4°F to 158°F) |
| Standby Battery |
100mAh
|
| Standby Current | ~0.8mA @ 12V DC |
| GPRS |
Class 12, TCP/IP
|
| Start Time | Cold: ≤38s, Warm: ≤32s, Hot: ≤2s |
| Antenna |

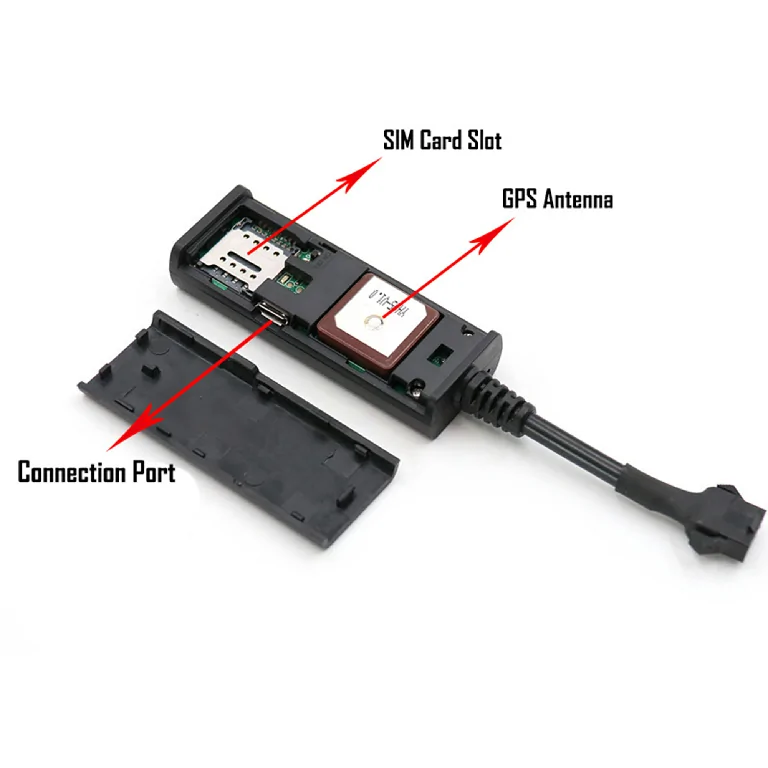

Built-in dual GSM + GPS antennas
|
Main Features
Real-time Tracking
Historical Tracking
Vibration Alarm

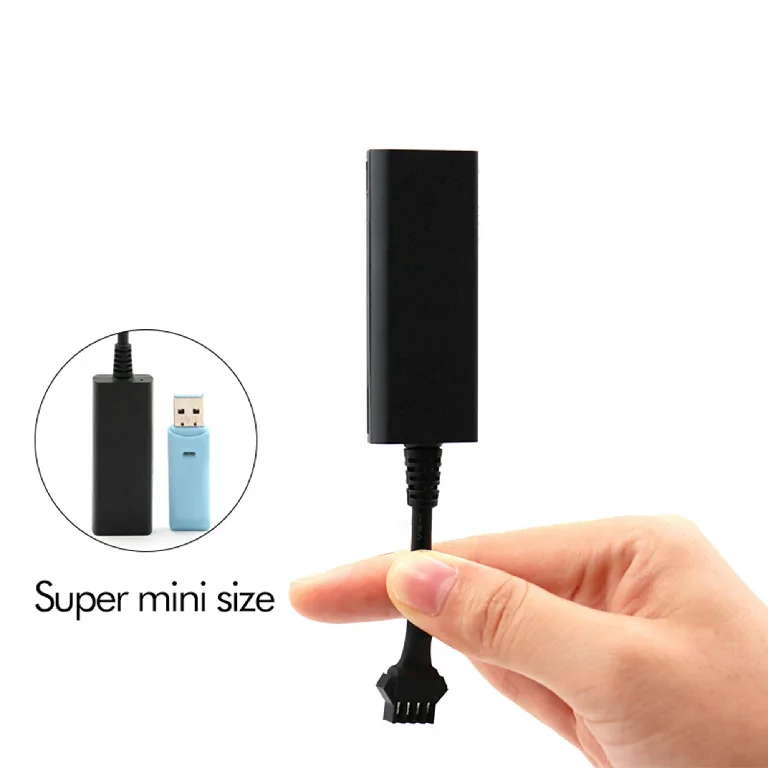

Super Mini Size
Geo Fence in/out Alarm
Cut Off Oil
Offline Alarm
Ignition Detection
Over Speed Alarm
TR05 GPS Tracker Applicable Scenarios
Anti Theft Solution
Anti Theft Solution
Click HereFleet Management
Fleet Management
Click HereAuto Financing
Auto Financing
Click HereBulk GPS Tracking Devices Ready-to-Ship
GREAT-WILL to rapid GPS tracker wholesale, We always keeps regular stock on our diverse and market-proven GPS tracking devices, meeting customers quick orders on personal trackers, pet trackers, animal trackers, vehicle trackers, equipment trackers and more.
We are support OEM and ODM or customization services .Whether it’s for your own business or for resale, this TR-05 GPS tracker quality and affordability.
After-sales service and Warranty
- Provide after-sales technical support and product testing
- Continuously adjust products to suit local conditions and vehicles
- Warranty period up to 3 years
Delivery Time and Shipping
- Sample delivery time is approximately 3-5 days.
- Large-volume orders take over 7 days.
- The device/platform software/SIM/IoT card undergo engineering inspection and testing before packaging and shipment.
- Multiple shipping methods supported.
4 Reasons to buy TR05 GPS tracker
- Compact Size - The black housing measures 66*23*12.5mm, making it easily concealed. It can be installed inside a vehicle, making it difficult to detect.
- Wide Voltage Range - Compatible with a variety of vehicles, including motorcycles, electric vehicles, cars, rentals, and loan vehicles, making it ideal for fleet management and tracking.
- One-Stop Service - Equipped with a platform and IoT card compatible with TR05 devices, it can be used together and customized to suit frequency bands and signals in various countries.
- Affordable Pricing - More discounted packages available
