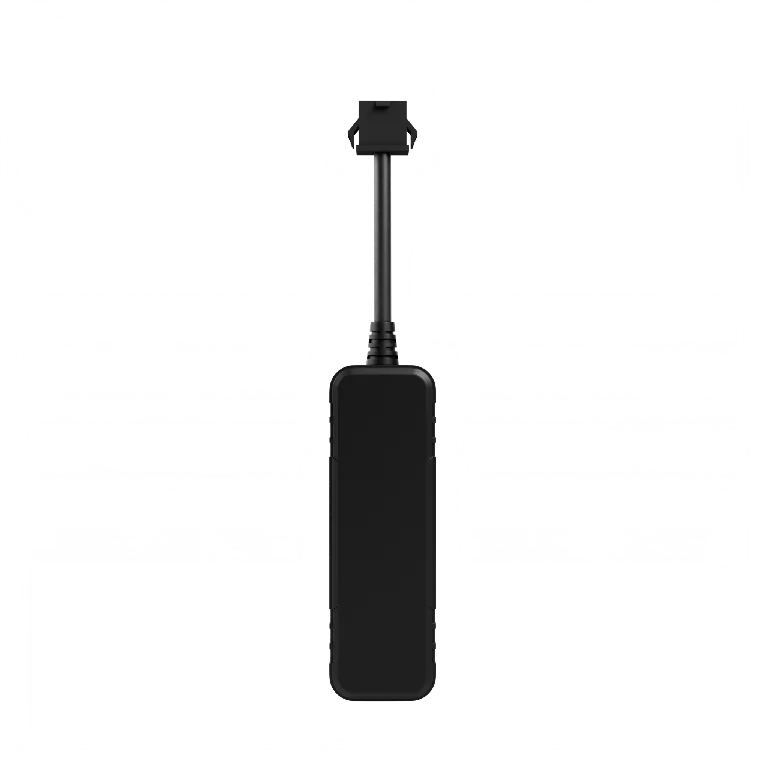

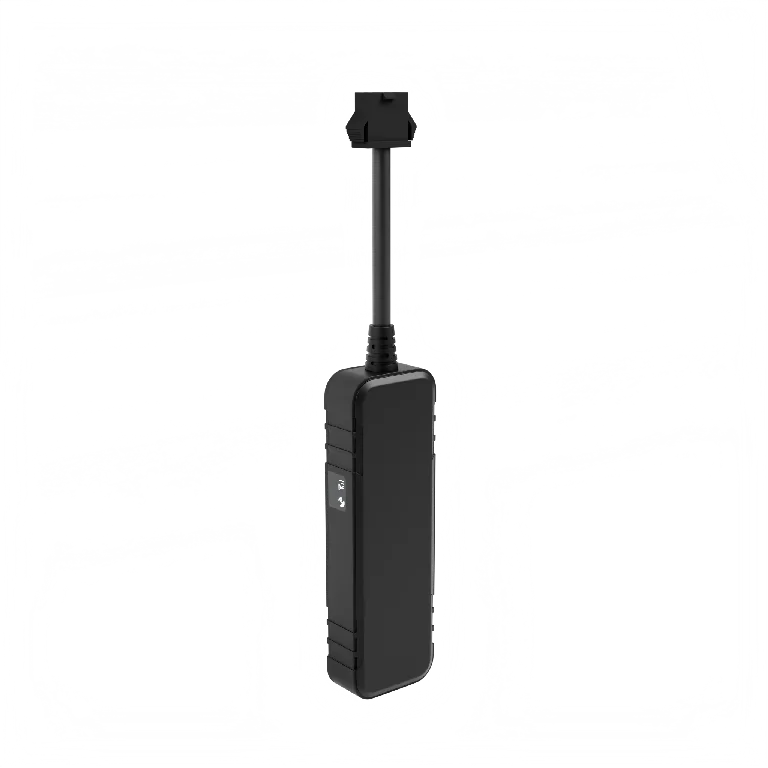

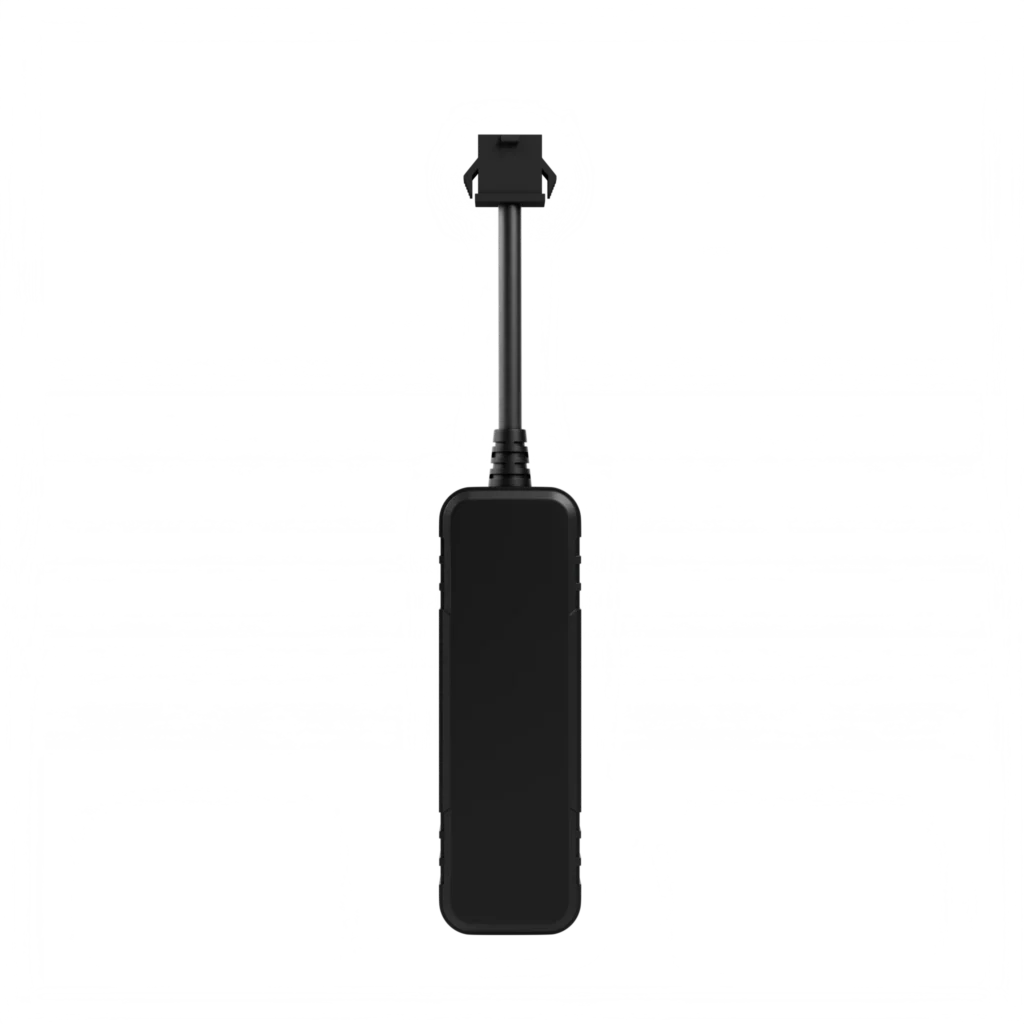

Basic Vehicle GPS Tracker GT02A | GreatWill

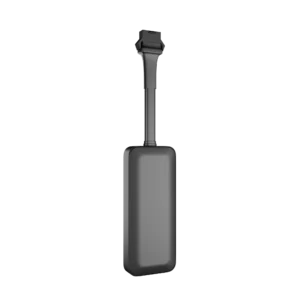

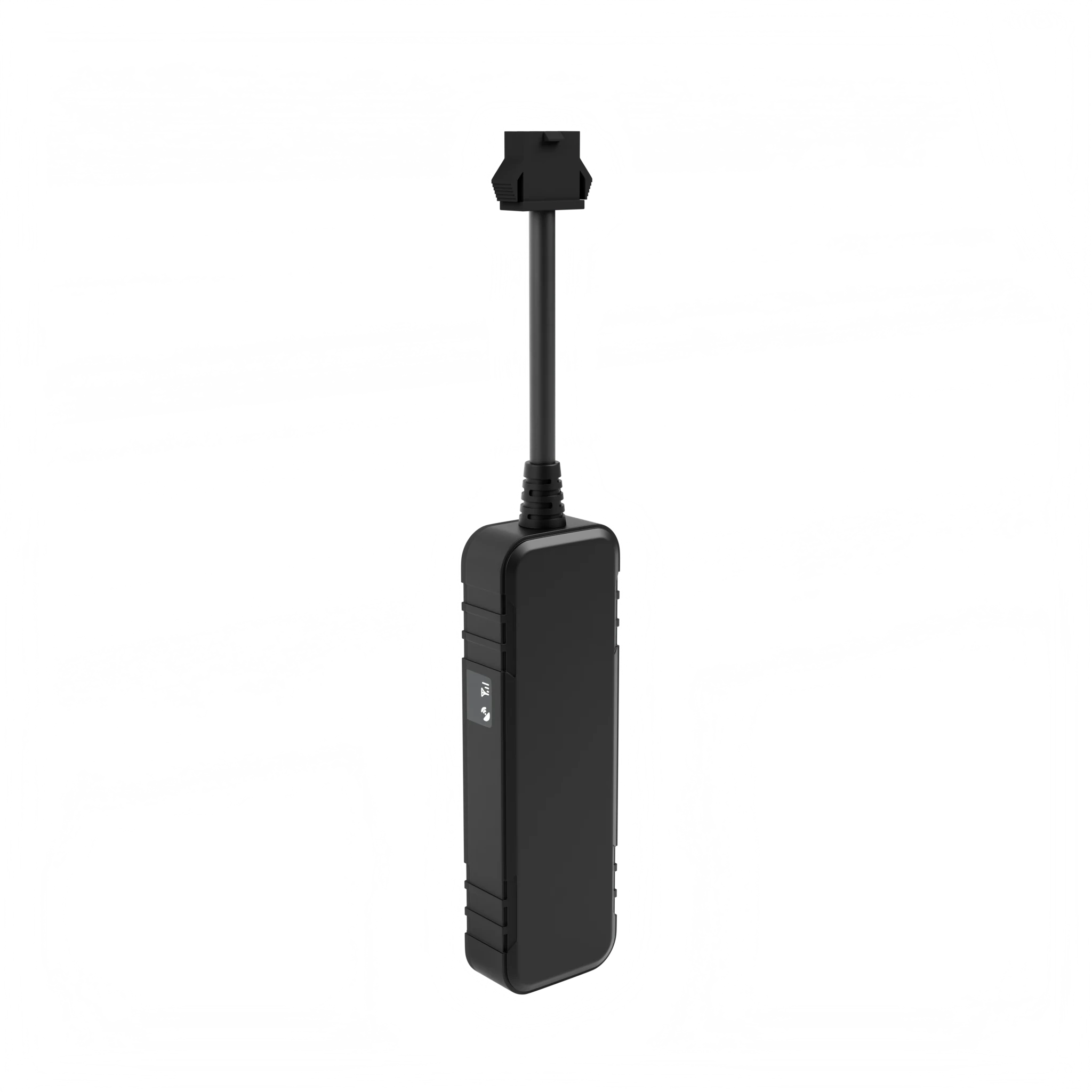

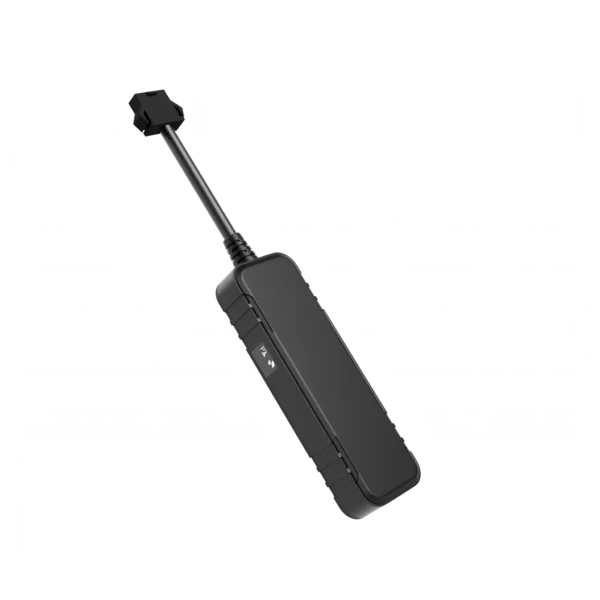

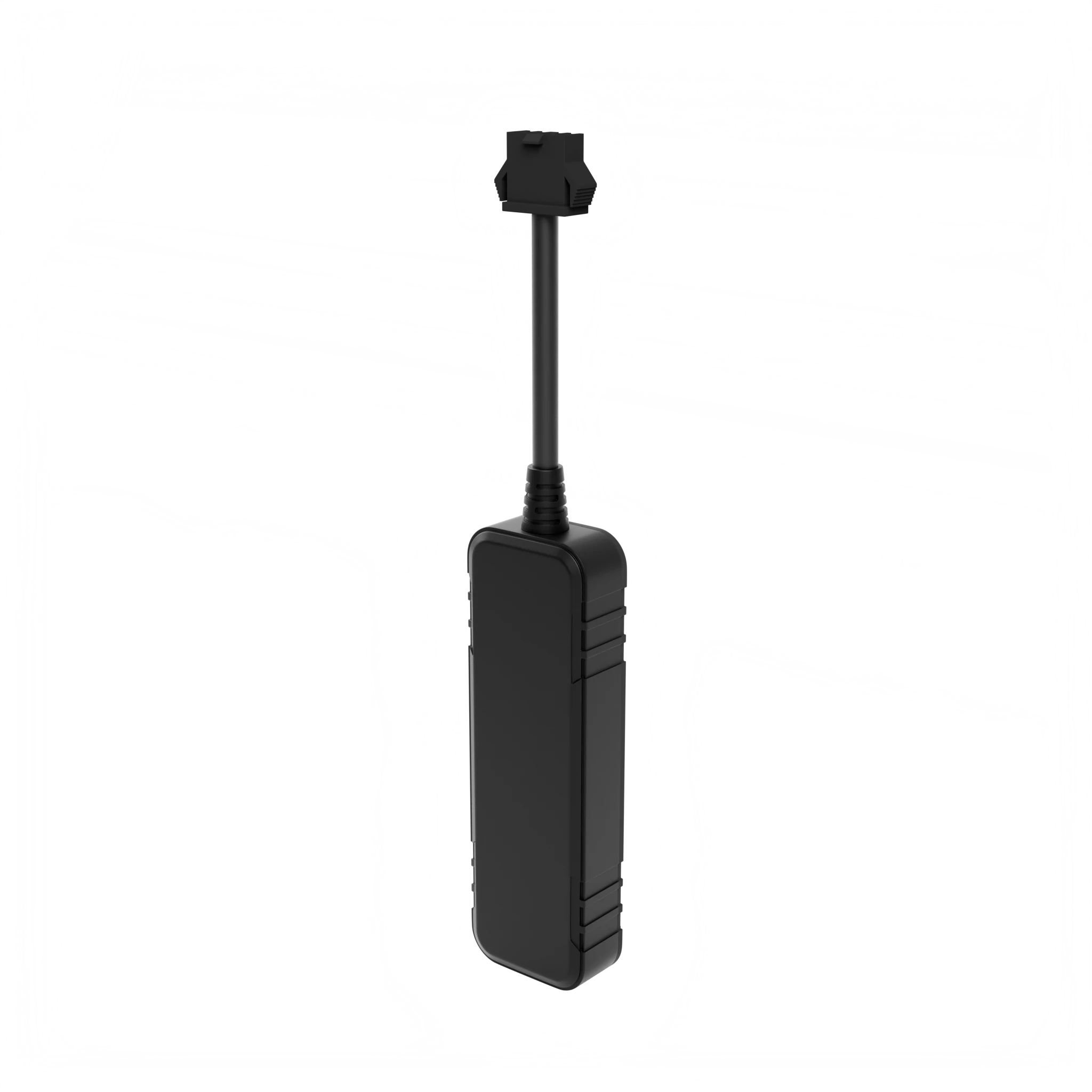

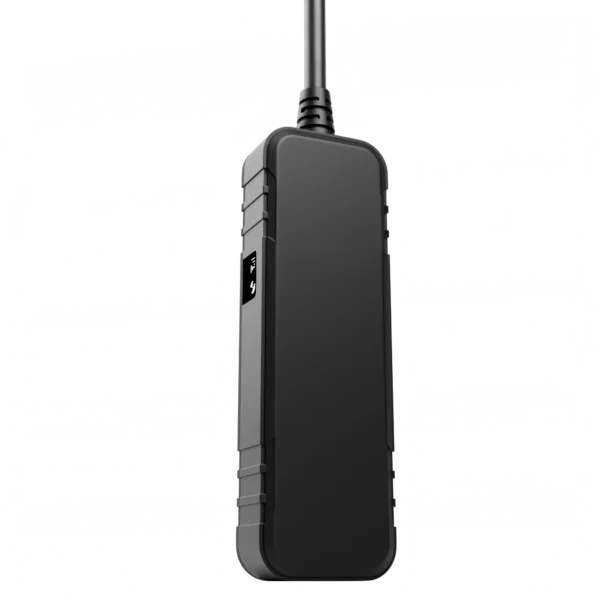

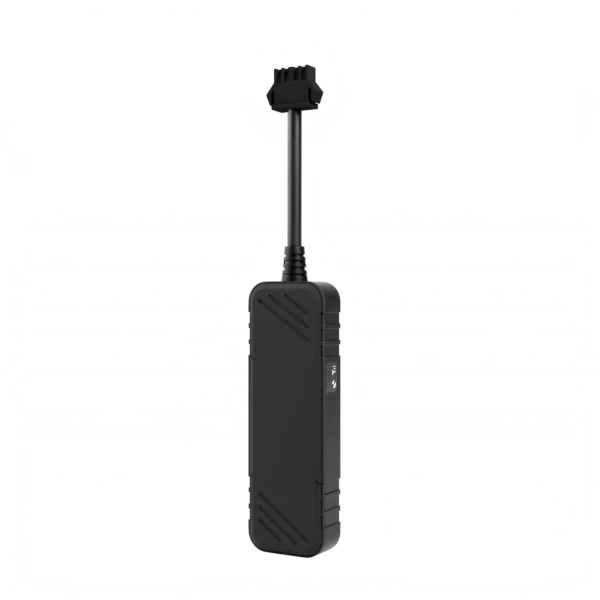

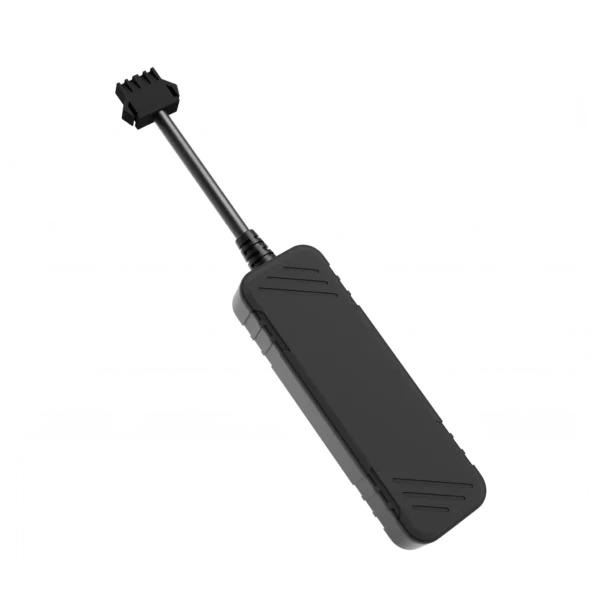

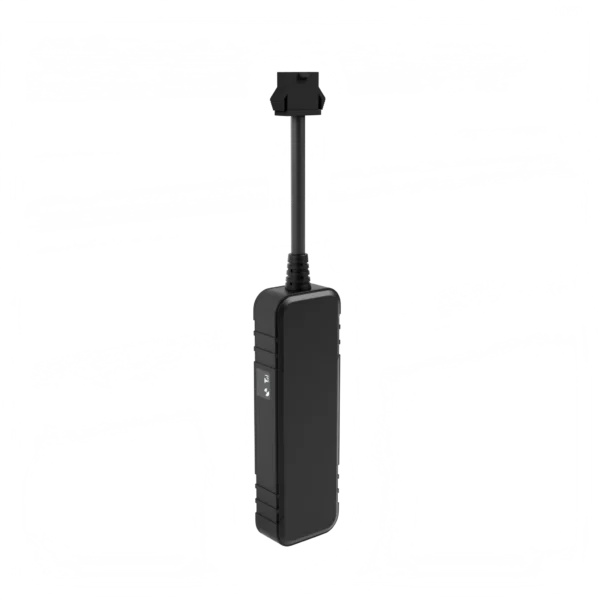

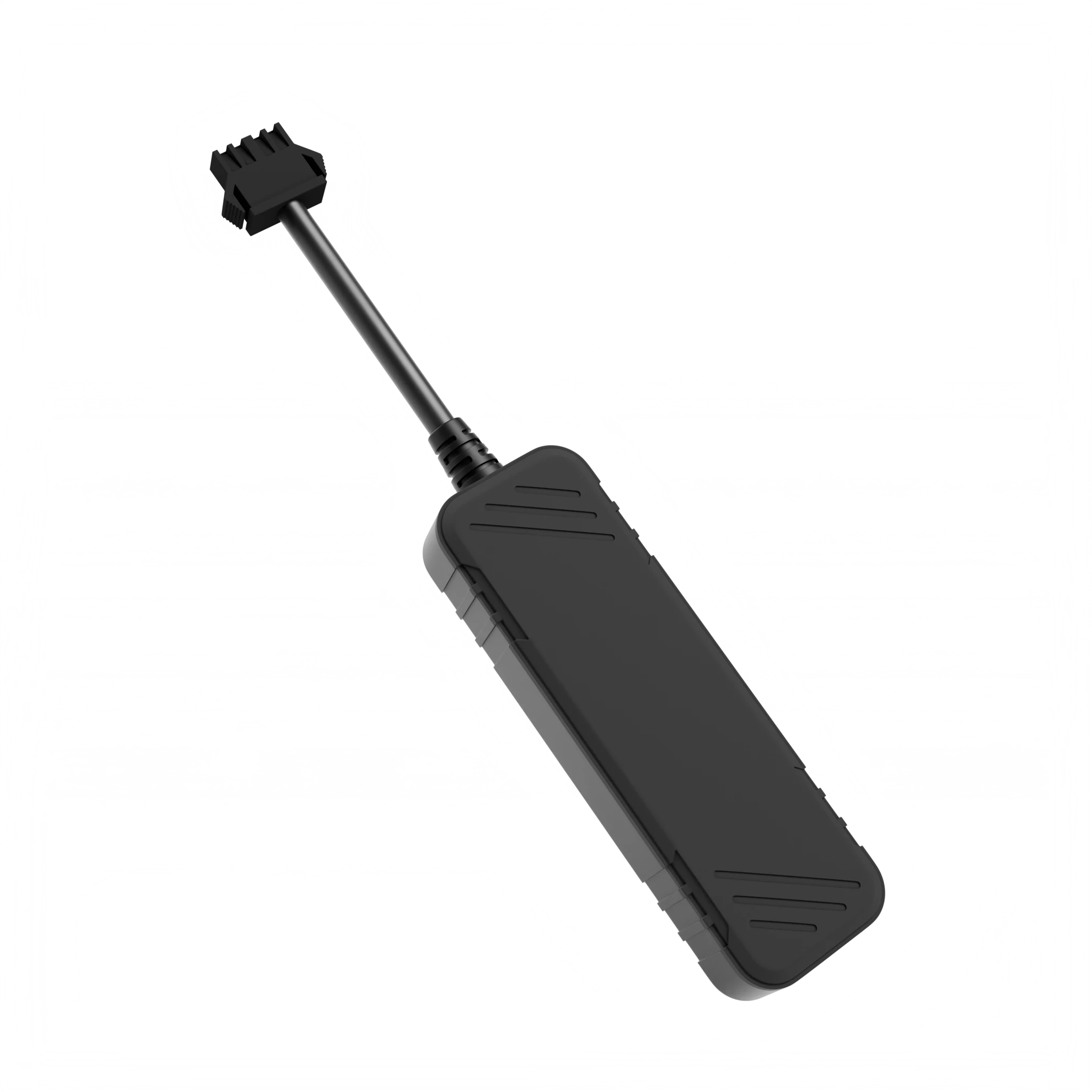

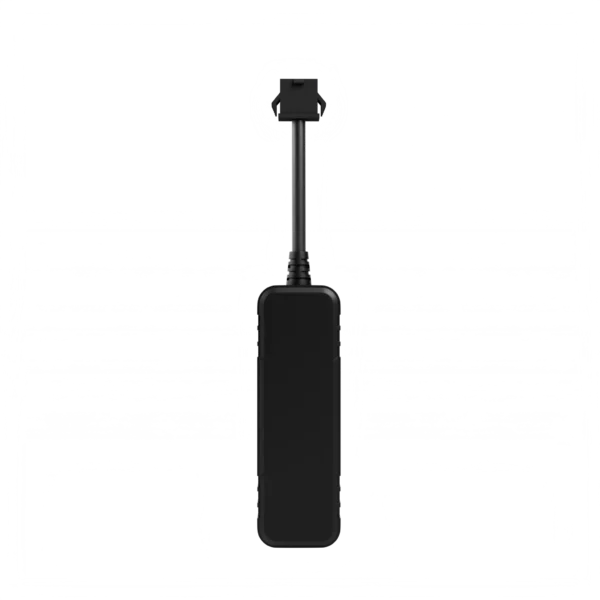

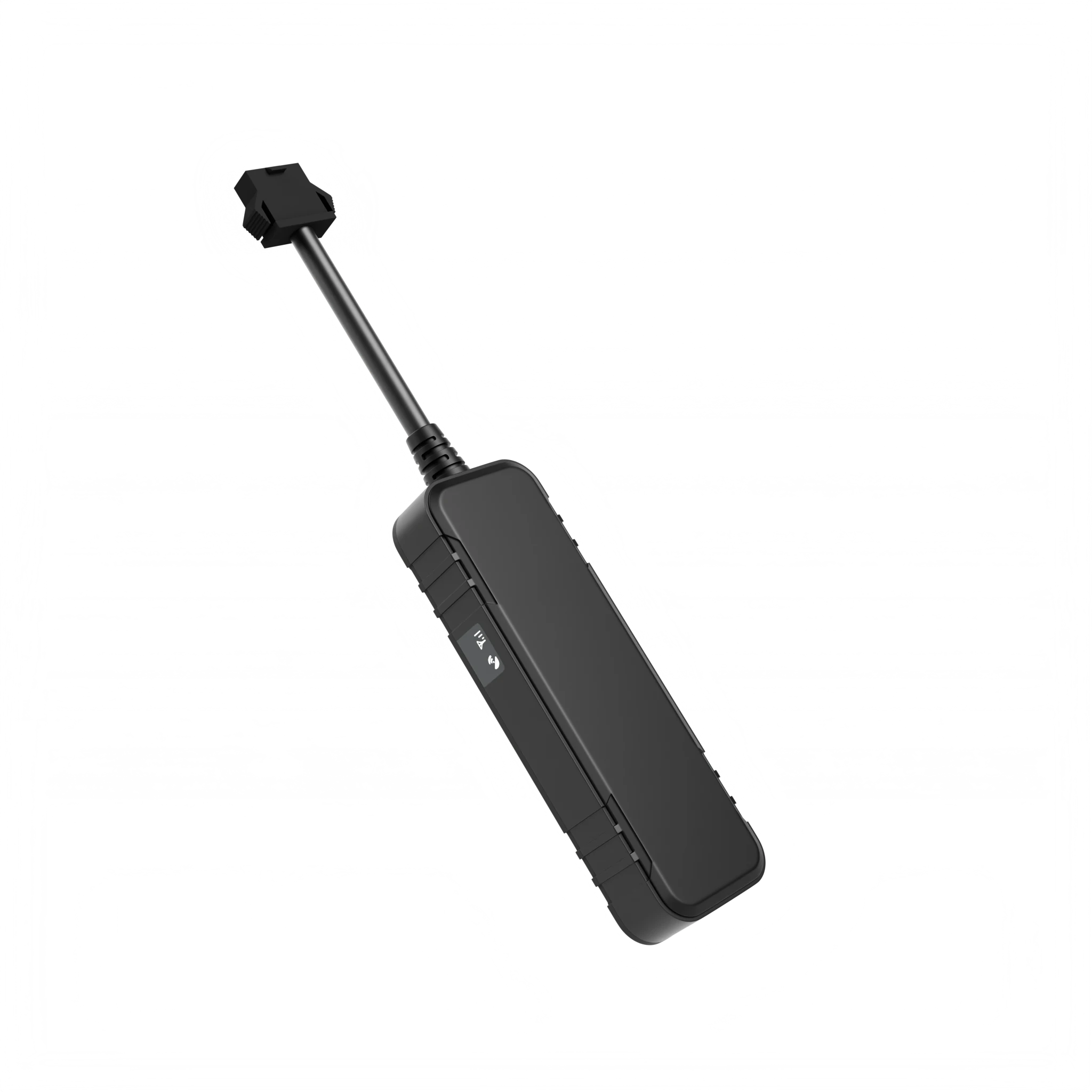

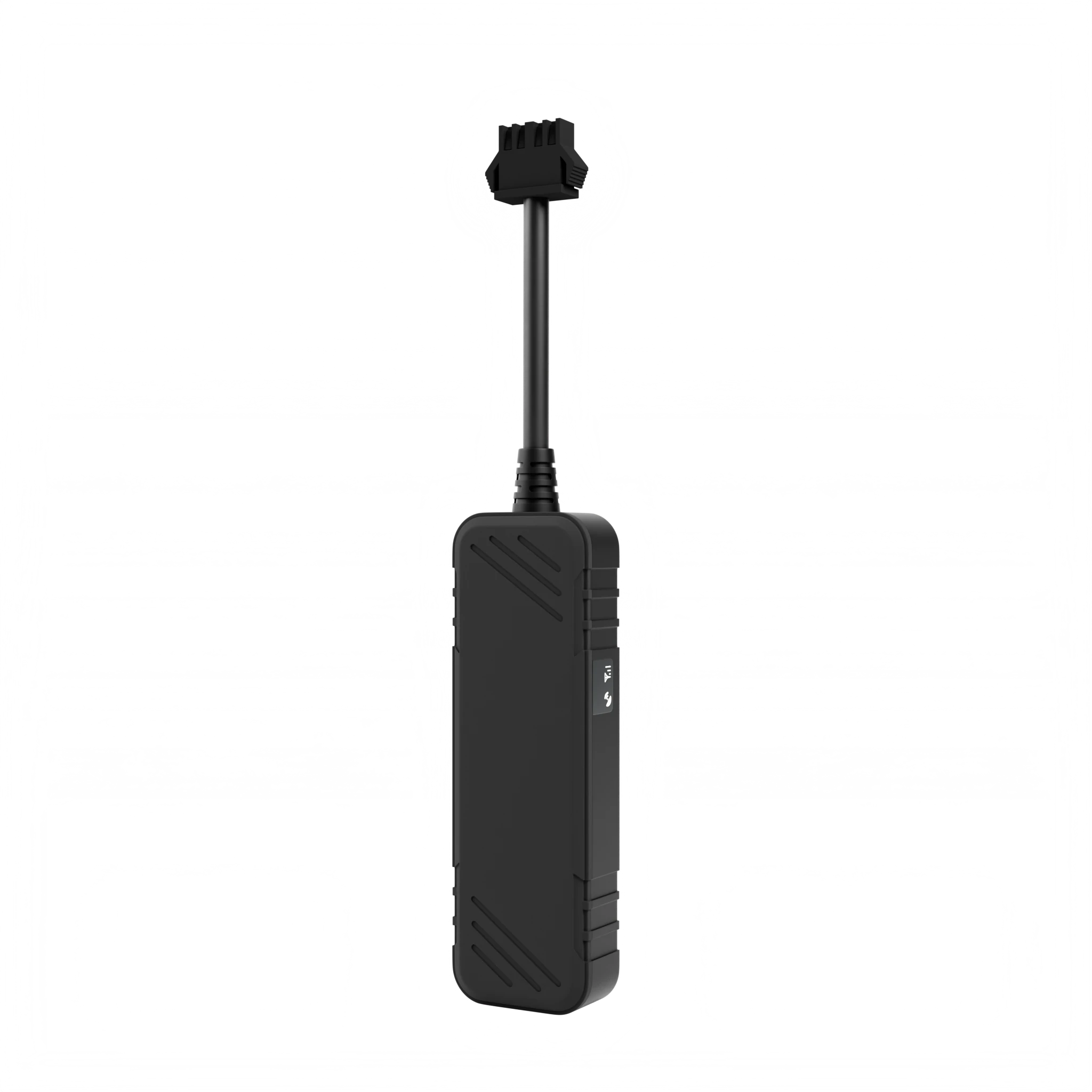

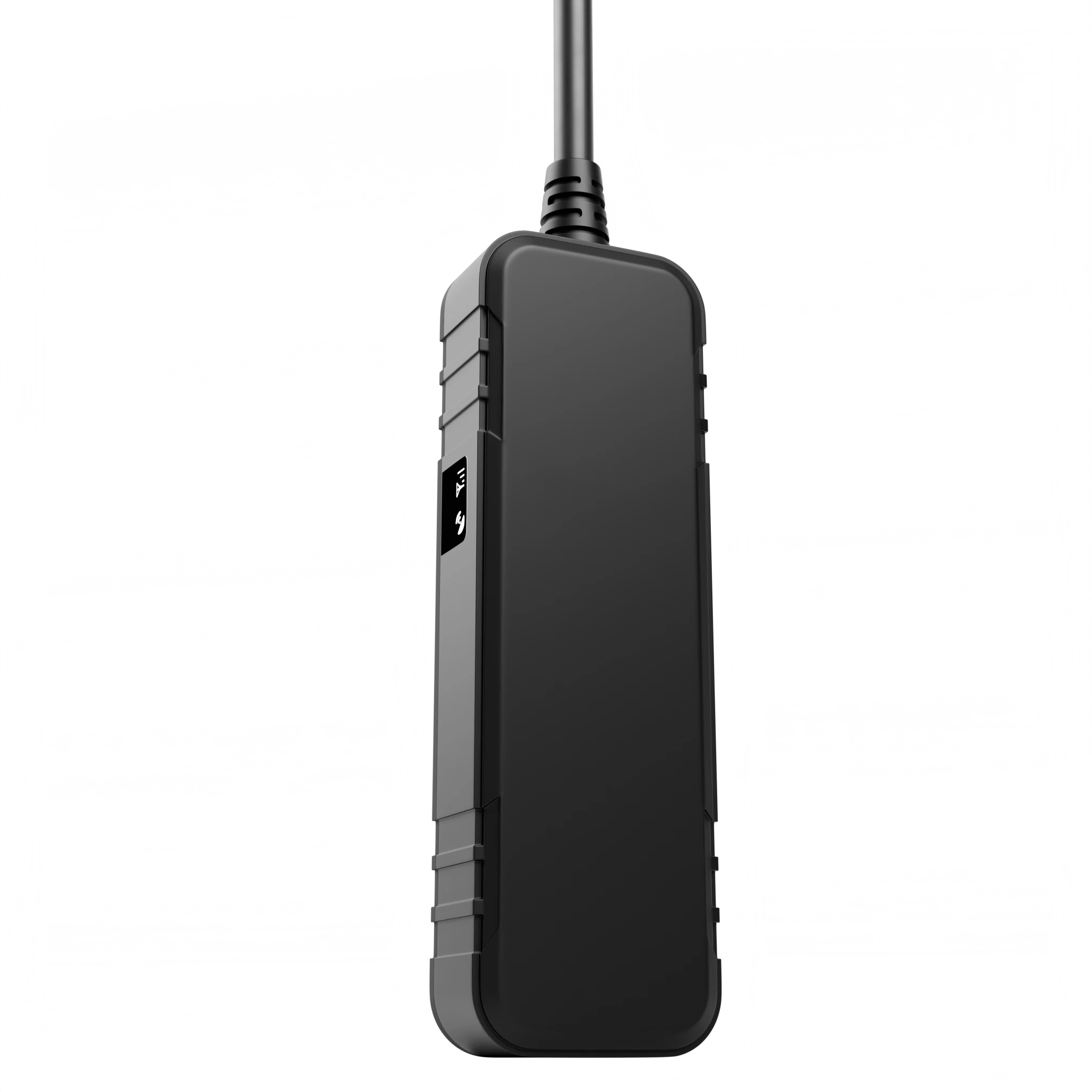

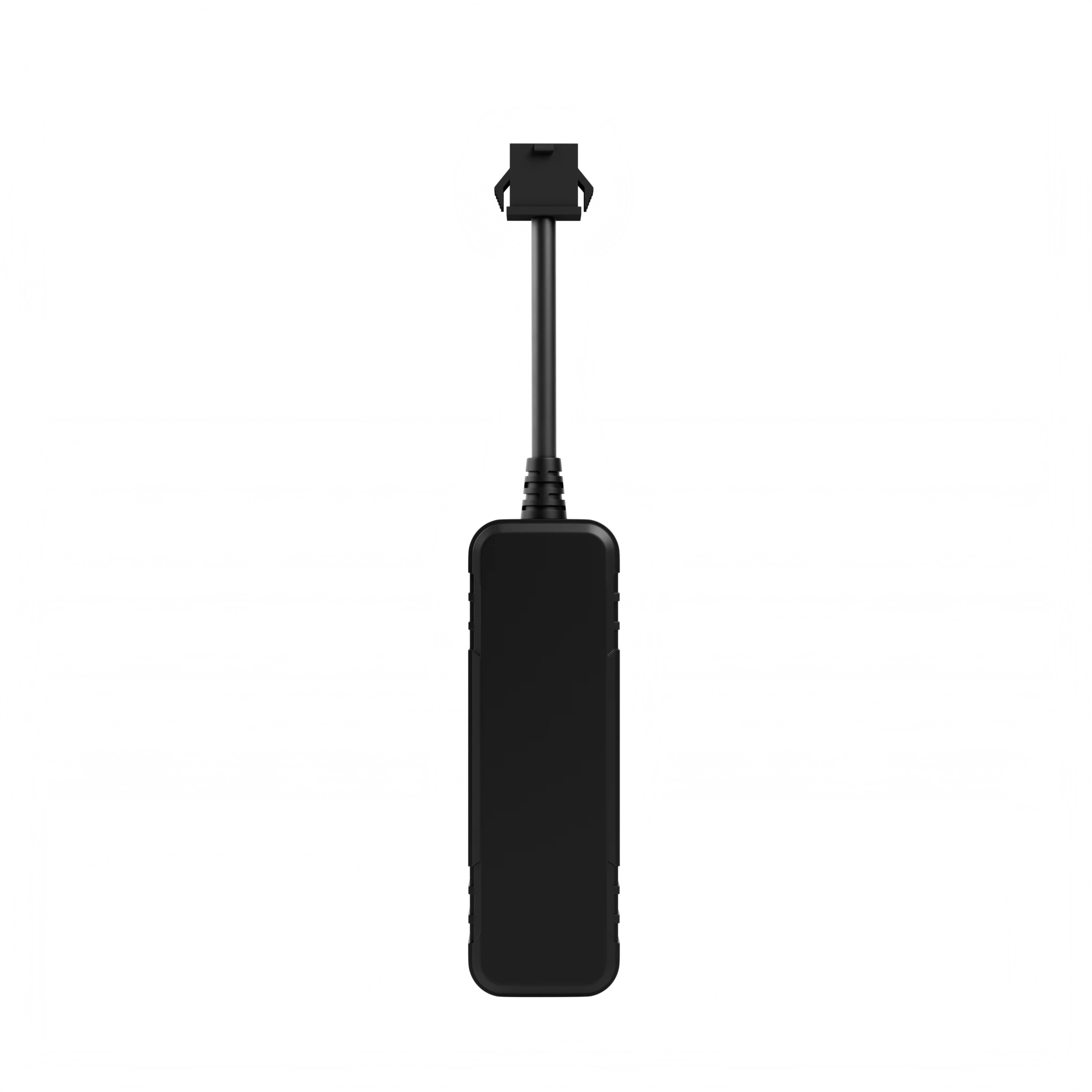

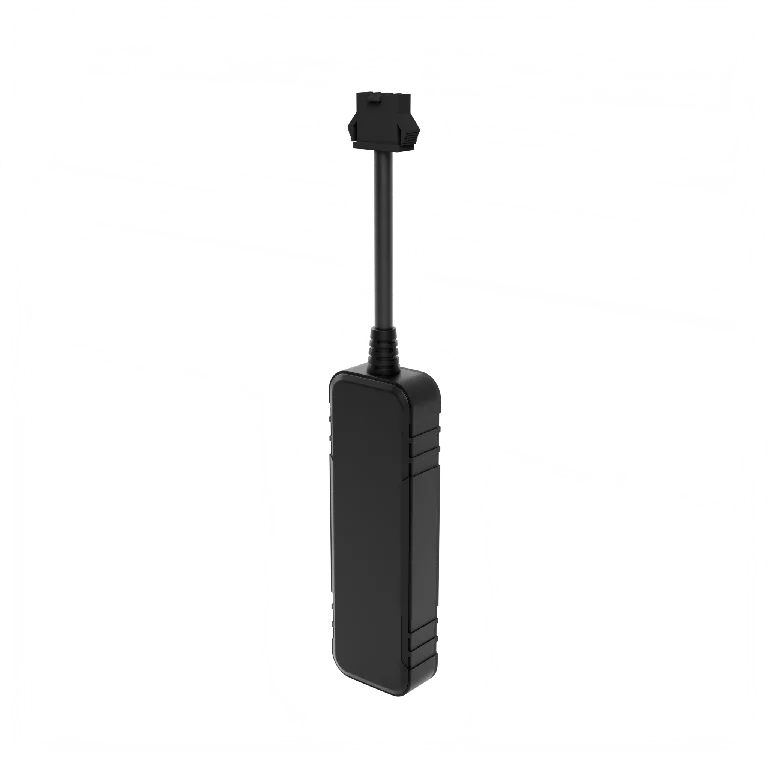

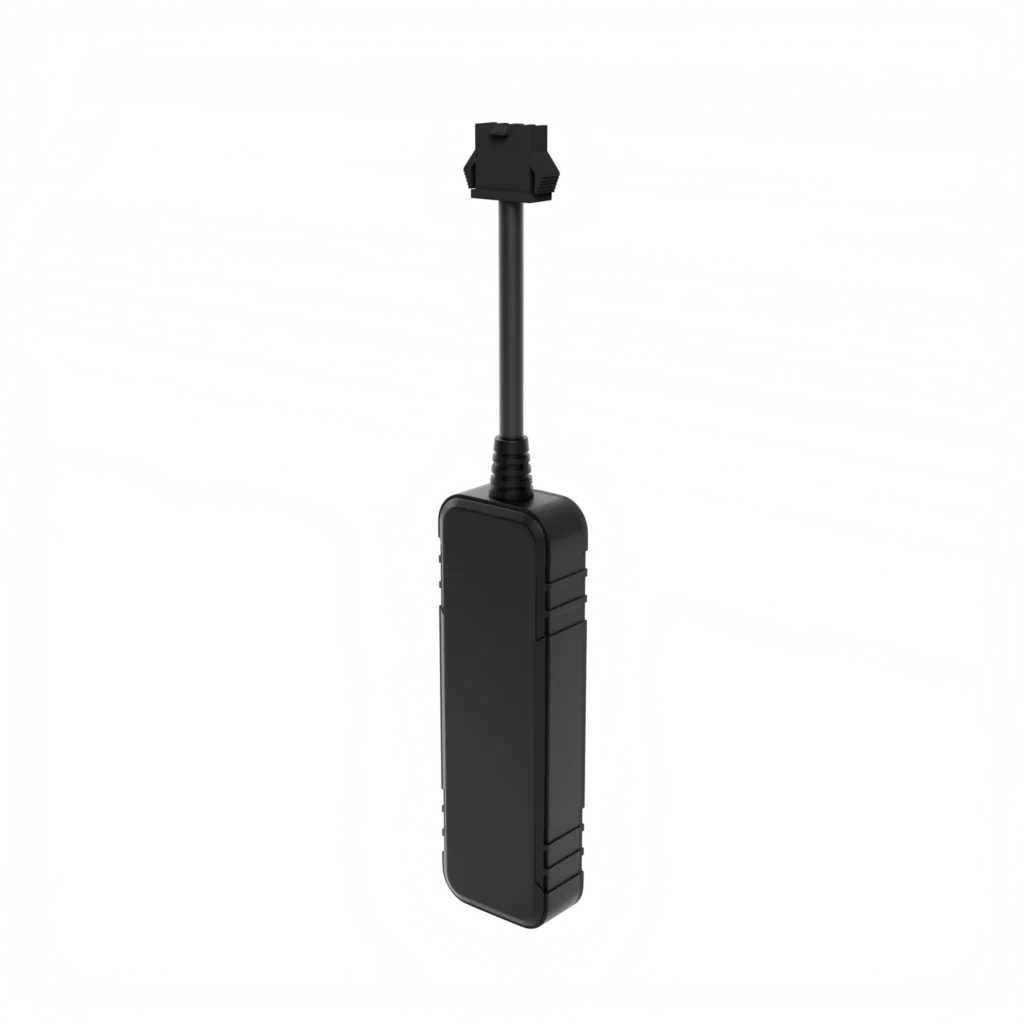

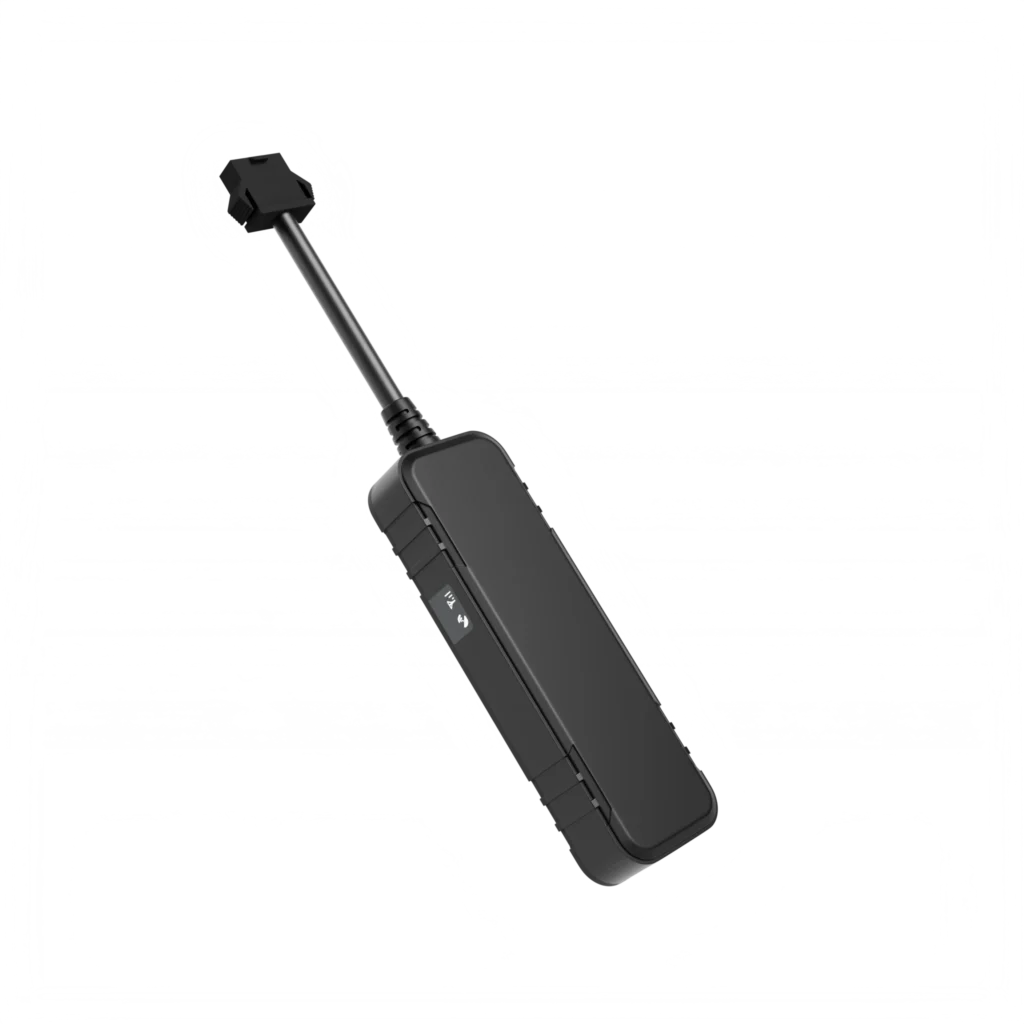

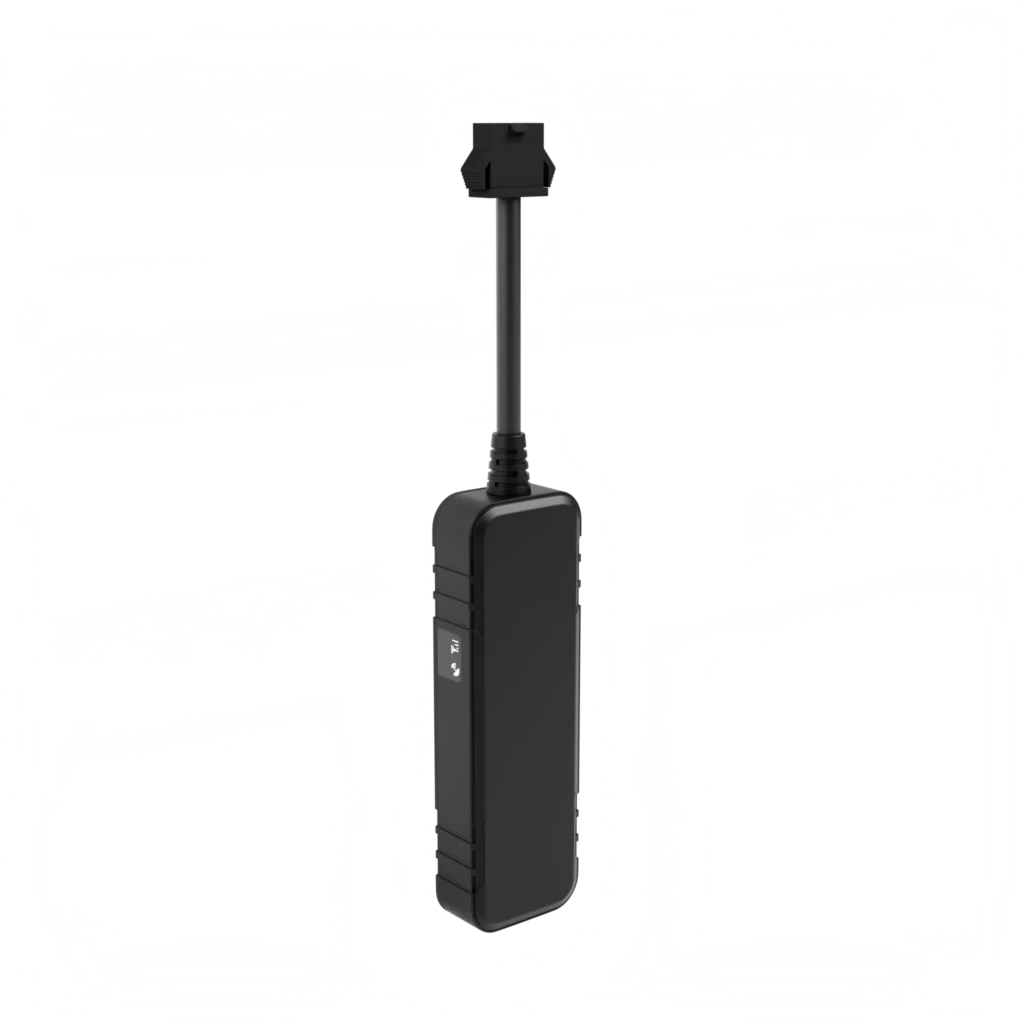

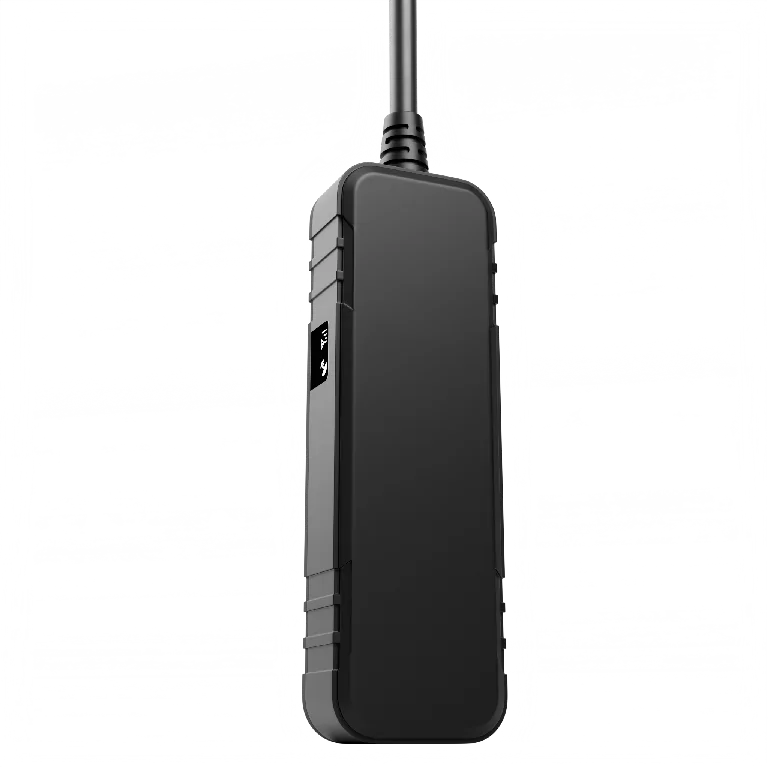

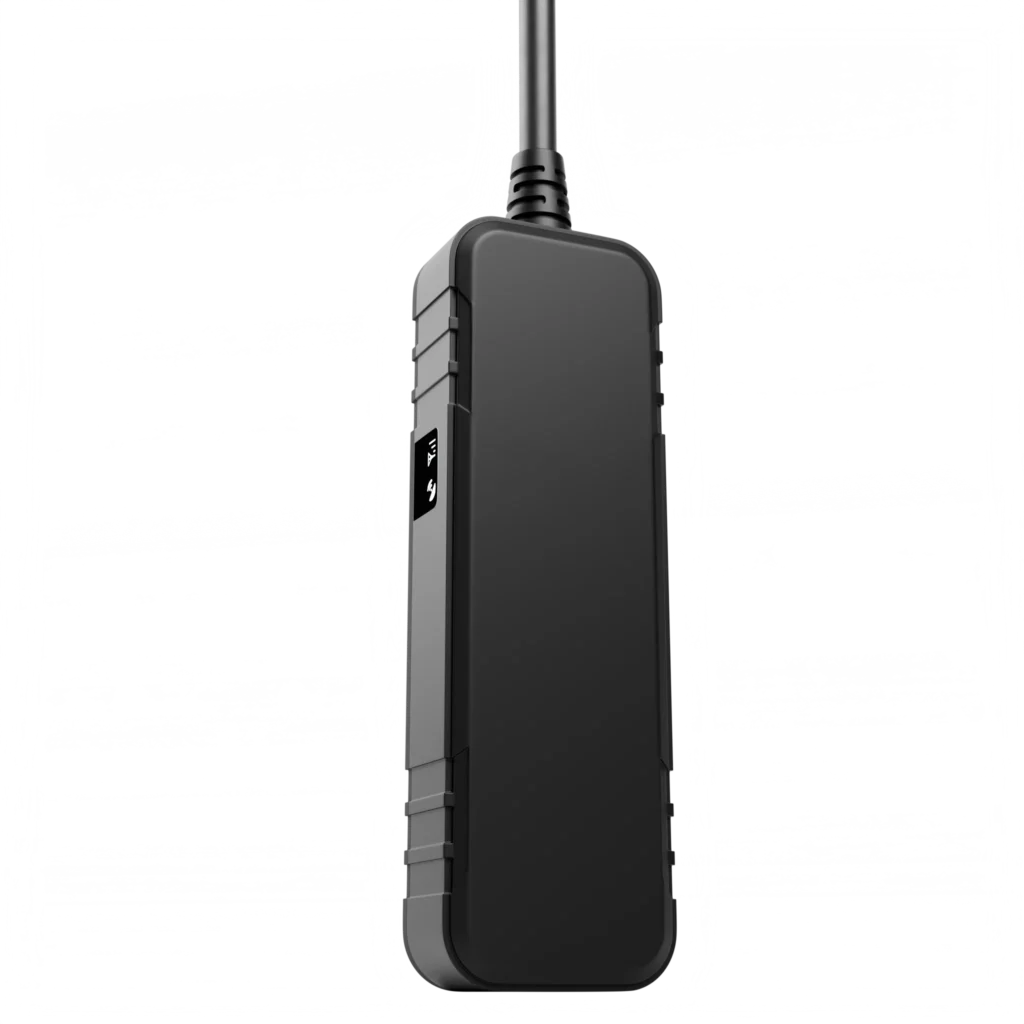

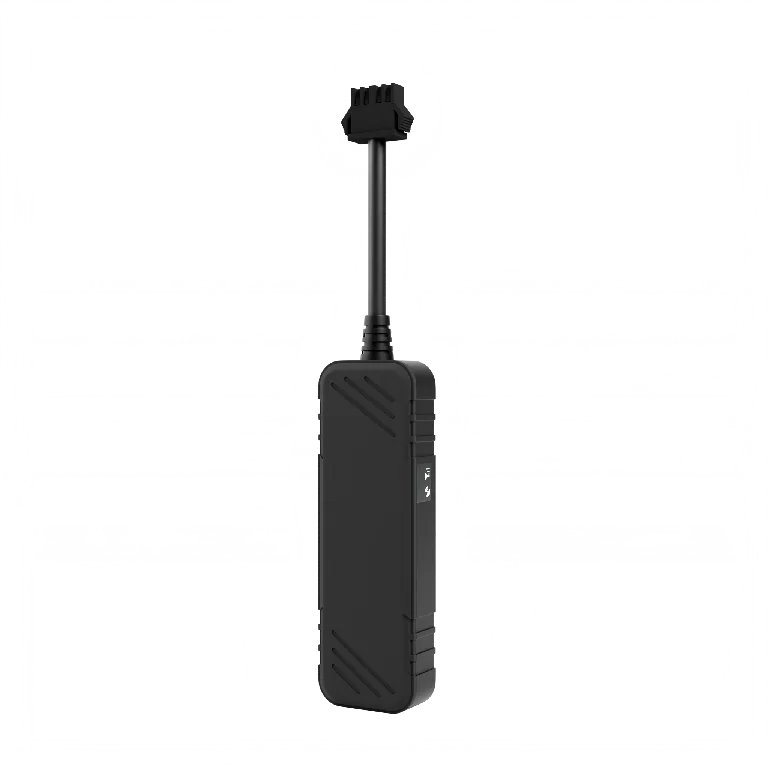

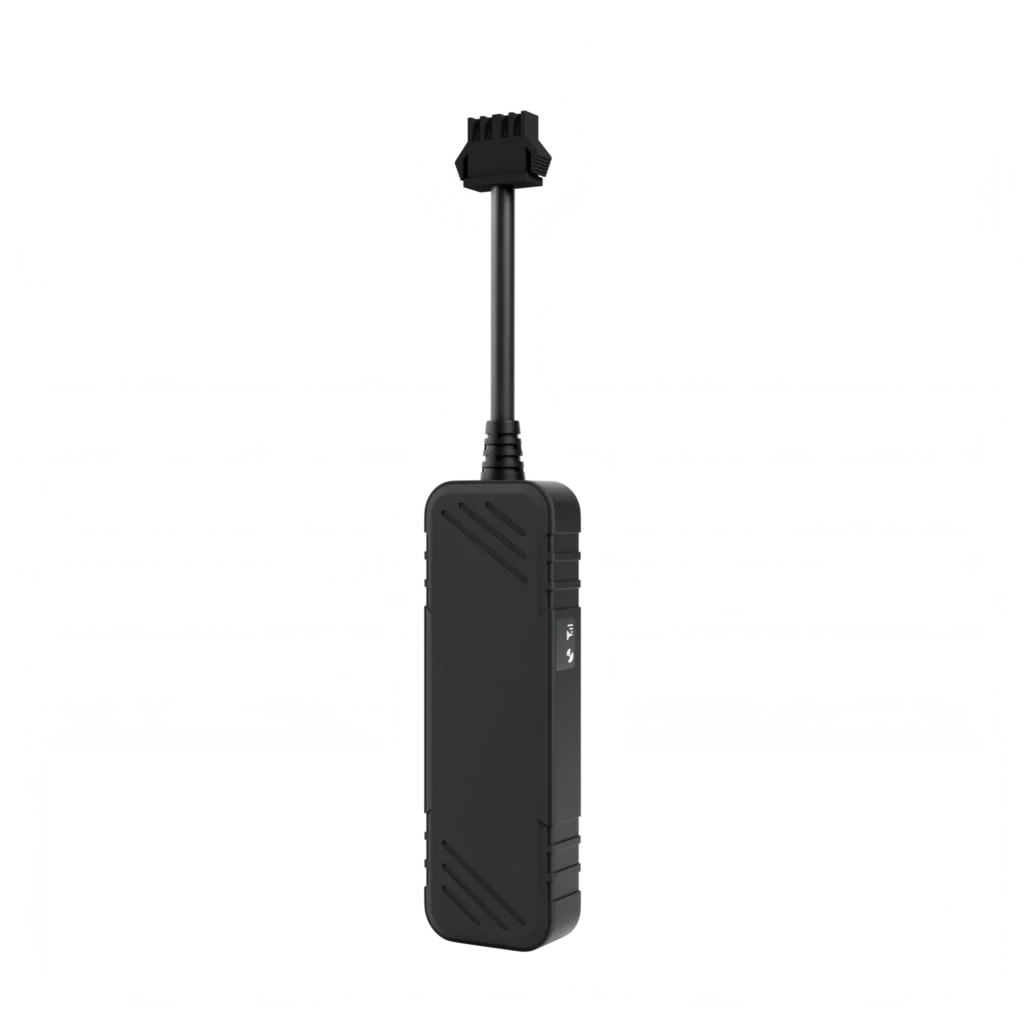

Great Will GT02A is a 4G wired GPS tracker designed for vehicle positioning and monitoring. With its stable performance, extensive detection capabilities, and flexible compatibility, it's widely compatible with vehicles operating from 9-36V, providing comprehensive support for vehicle safety management and tracking.
- Low power consumption
- Supports fuel and power outages
- Supports assisted positioning
Multiple Positioning Modes，Smart GPS Terminal--GT02A
GT02A is a compact 4G vehicle tracker integrating GPS+EPO+LBS multi-modepositioning. It adopts self-developed GSM and GPS chips, which have extremelyfast data transmission and.good network compatibility
Ignition On/Off Status
Accurately identify whether the vehicle is on. Users can view the vehicle's "on time" and "off time" in the backend, helping to determine whether the vehicle is being used illegally (such as an employee using a company vehicle for personal purposes)
Assisted Positioning
When GPS signals are weak (such as in tunnels and underground garages), EPO base station positioning and other auxiliary methods can be used to supplement location information, reducing positioning disconnections.

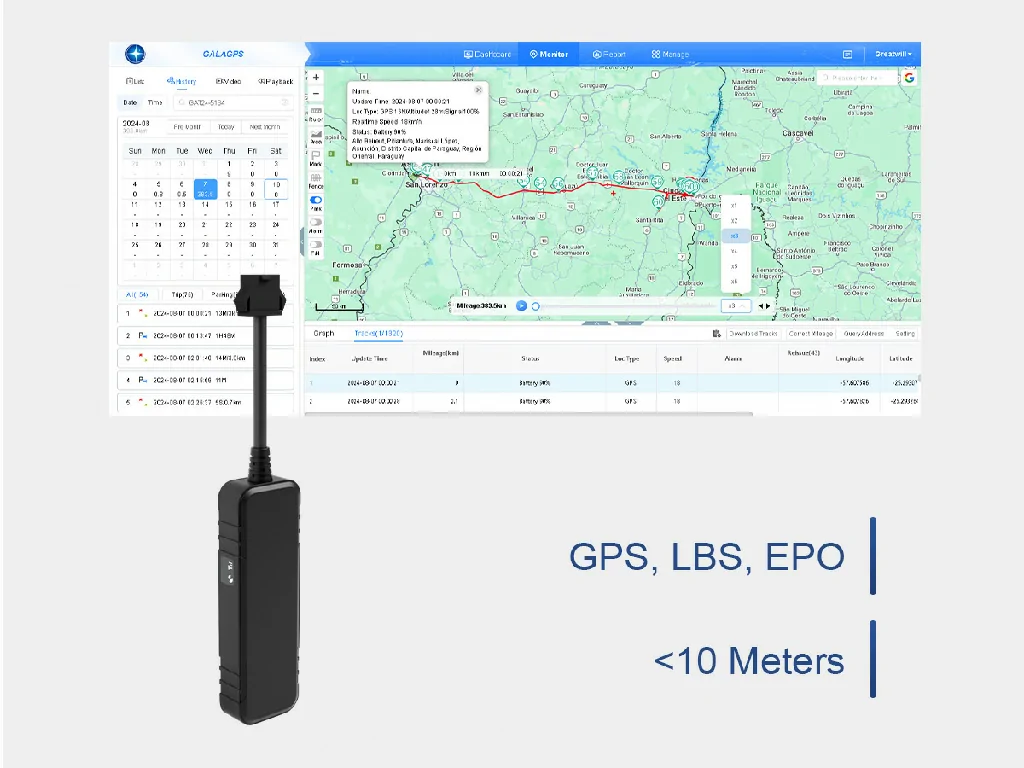

Built-in Dual Antenna Design
- GPS Ceramic Antenna (for more stable positioning signal reception and improved positioning accuracy)
- Communication FPC Antenna (flexible material, adapts to the vehicle's internal installation space, ensuring 4G signal transmission)
Technical Specifications
| Specification | GT02A |
| Network Frequency | 4G Cat-1 |
| Working Voltage | DC 9V – 36V |
| Dimensions | 83mm * 23mm * 12.5mm |
| Location Accuracy |
<10 Meters
|
| Positioning Way | GPS + LBS + EPO |
| Working Current |
28mA @ 12V (Static Current: 3mA)
|
| Standby Battery | 55mAh (approx. 10 mins working time) |
| Working Temperature |
-25°C to +75°C (-13°F to 167°F)
|
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| G-sensor |
Built-in 3-axis accelerometer
|
| FOTA Remote Upgrade | Supported |
| Warranty |
12+ Months
|
Main Features
Real-time Tracking
Remote Fuel Cut-off
ACC Detection
FOTA Remote Upgrade
DC 9-36V
GT02A GPS Tracker Applicable Scenarios
Commercial Fleet Management
Commercial Fleet Management
Click HereConstruction Vehicle Tracking
Construction Vehicle Tracking
Click HereLeased Vehicle Management
Leased Vehicle Management
Click HereGlobal Multi-Version GT02A for Bulk Orders
We offer market-proven vehicle trackers for global clients, with support for OEM/ODM customization. With its stable performance and high cost-effectiveness, the GT02A is the ideal choice for your own business or for resale.
After-sales service and Warranty
- Provide after-sales technical support and product testing
- Continuously adjust products to suit local conditions and vehicles
- Warranty period up to 3 years
Delivery Time and Shipping
- Sample delivery time is approximately 3-5 days.
- Large-volume orders take over 7 days.
- The device/platform software/SIM/IoT card undergo engineering inspection and testing before packaging and shipment.
- Multiple shipping methods supported.
The biggest highlight of the GT02A GPS tracker is its three major warning functions.
- Power Abnormal Alert: This includes a "Vehicle Power Loss Alert" (e.g., the tracker is maliciously powered off) and a "Vehicle Low Voltage Alert" (e.g., the vehicle battery is low). Both alerts are sent in real time to prevent device failure or vehicle startup issues caused by power issues.
- Vehicle Power Loss Alert: When the host detects that the vehicle voltage drops below a certain value (less than 5V) or the power cord is unplugged, a power loss alert is generated.
- Vehicle Low Voltage Alert: When the host detects that the vehicle voltage drops below 9V, a low voltage alert is generated.
- Overspeed Alert: Supports preset speeding thresholds (e.g., 120km/h on highways, 60km/h in urban areas). When the vehicle's speed exceeds the threshold, the device immediately uploads the speeding data and triggers an alarm, helping to manage driving safety.
