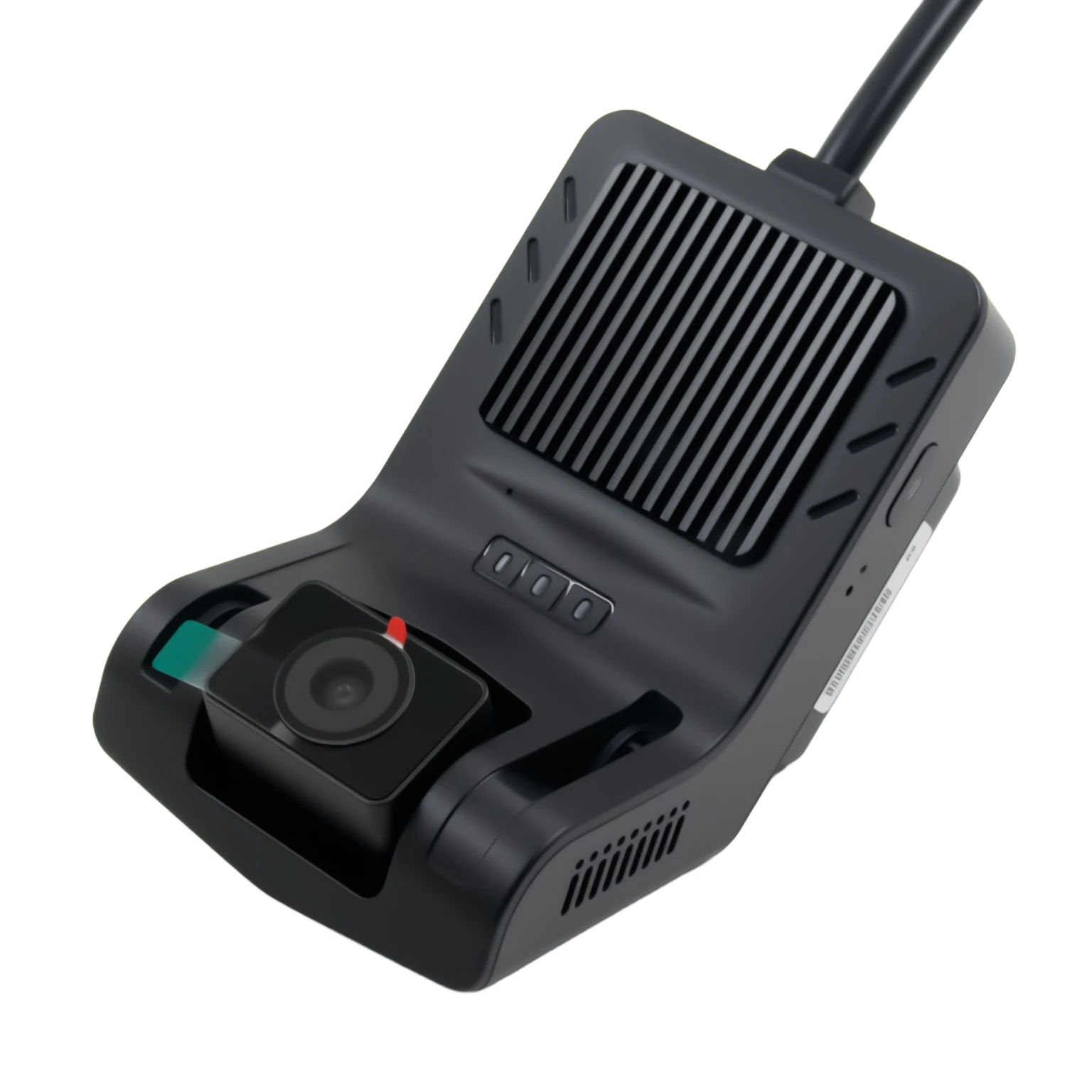

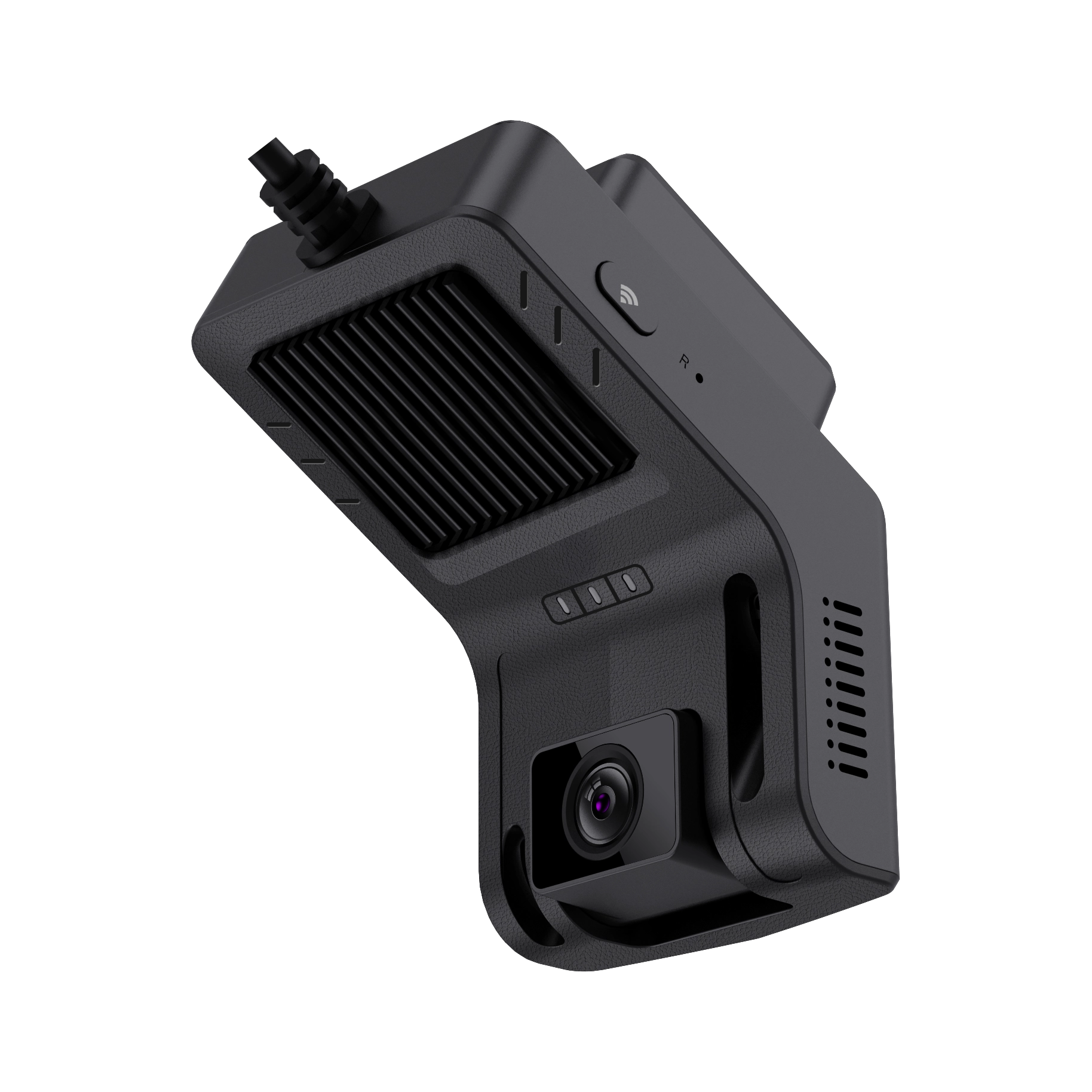

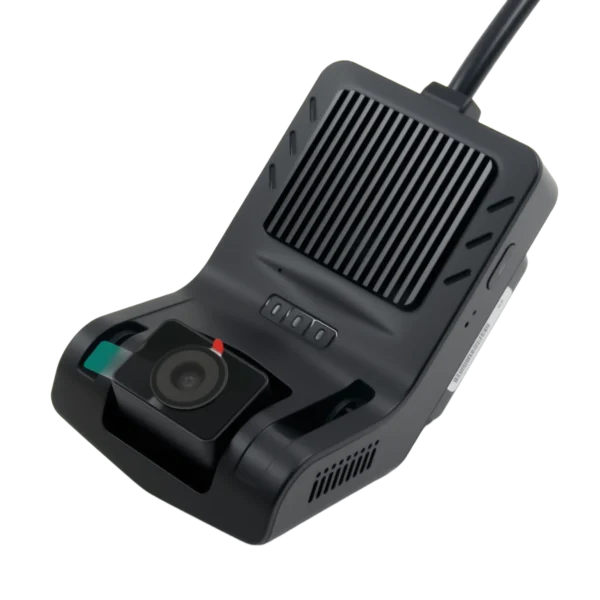

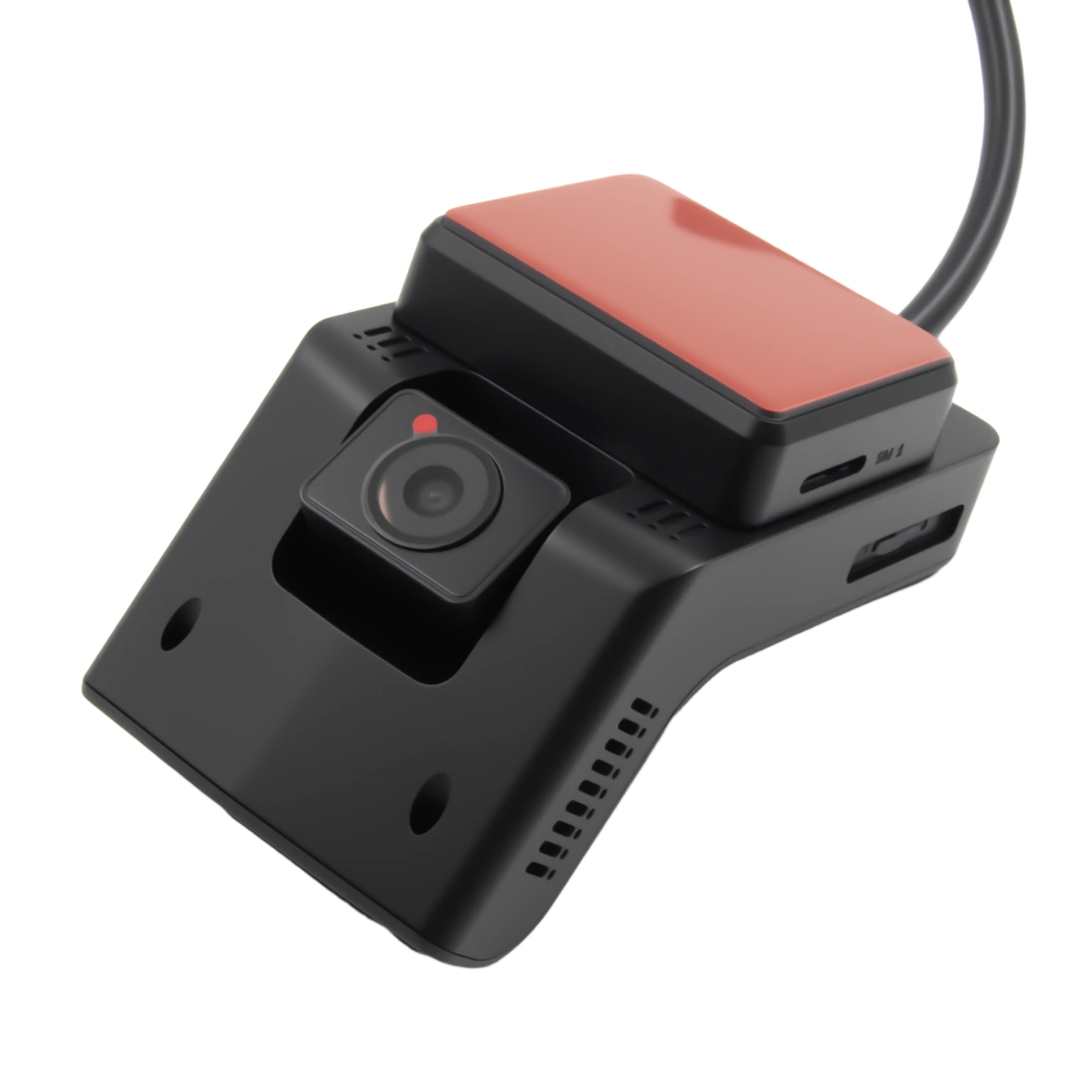

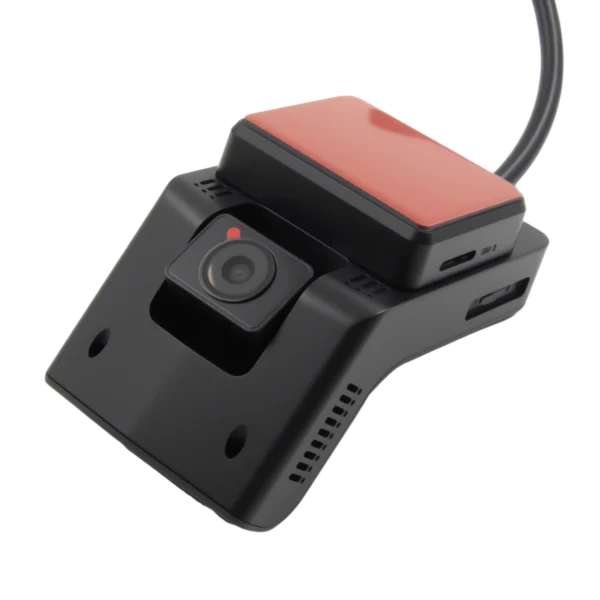

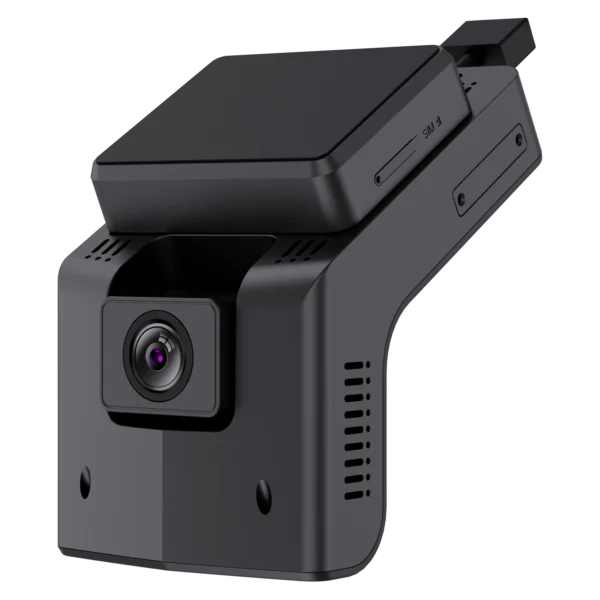

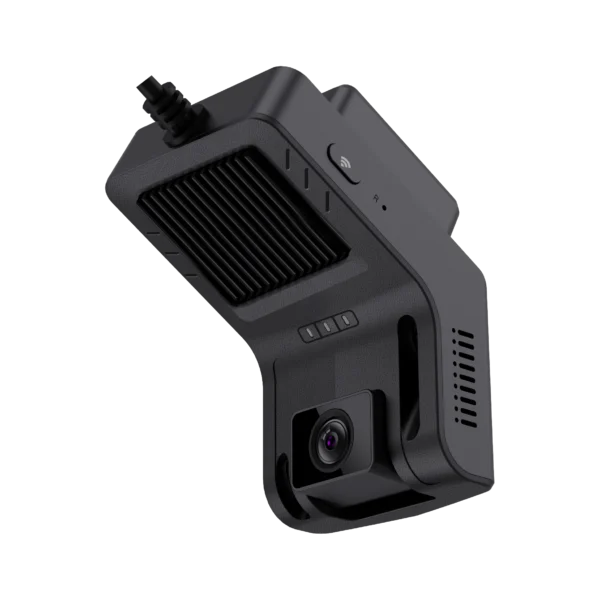

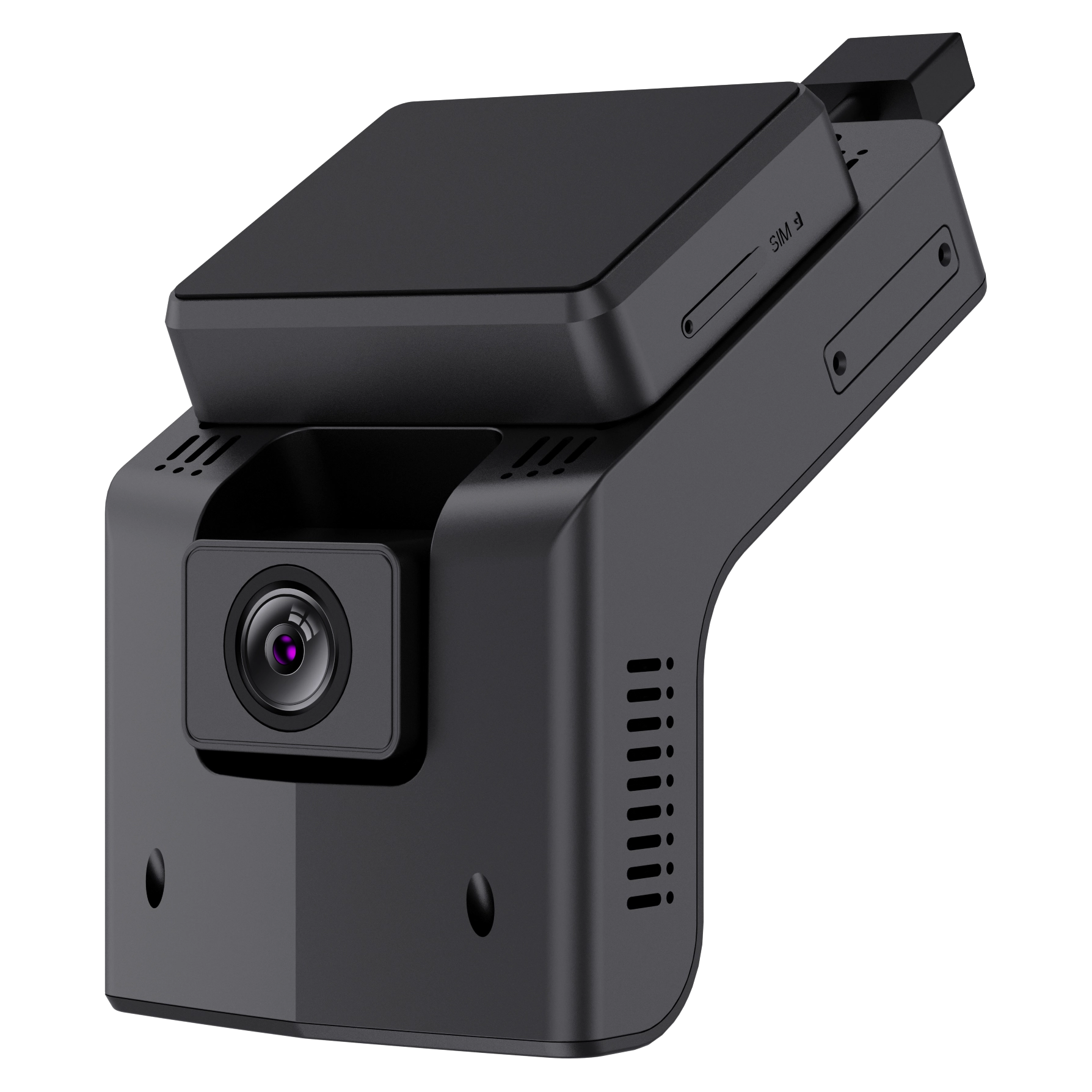

The GD14N is a cost-effective 4G truck dash cam with built-in GPS & AI-powered ADAS/DMS. Dual 1080P cameras, 720P AI mode, and real-time fleet telematics keep drivers safe and fleets in control.
ADAS & DMS algorithms run at 720P to detect forward collision, lane departure, fatigue, distraction, smoking, phone use, seat-belt and even drinking events—cutting accident rates and insurance costs.
LTE Cat 1 bis modem with global band variants delivers live video, GPS/BeiDou tracking and two-way audio for complete remote fleet oversight.
Front + in-cabin cameras both capture 1080P; the cabin cam offers IR night-vision and color/BW switch for 24/7 driver monitoring.

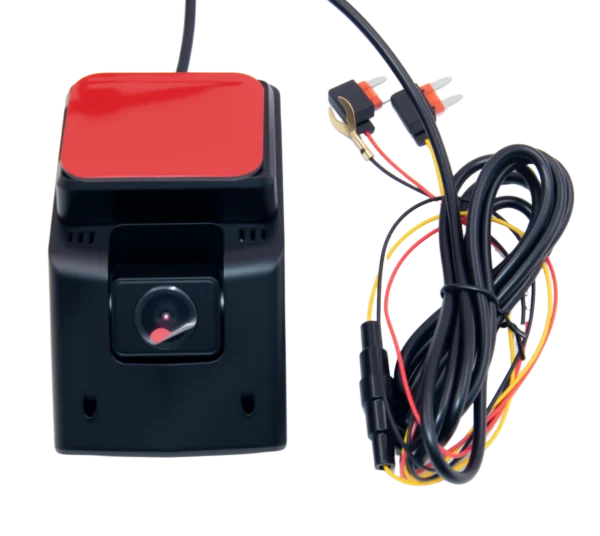

Integrated 4G and GPS antennas simplify install; <0.1 mA parking current plus remote-wake keeps batteries safe and fleets online.
The dashboard camera is installed on the windshield with a high viewing angle to achieve optimal coverage and convenient operation.
Specification | GD14N |
Processor | SA230D Dual-Core @ 1.2 GHz + 1.0 T NPU |
4G Communication | Quectel EG800K series LTE Cat 1 bis (10 Mbps ↓ / 5 Mbps ↑) |
Positioning System | GPS & BeiDou dual-mode, ceramic antenna built-in |
Operating System | Linux |
Front Camera | 1080P/25 fps, FOV H:105° |
In-Cabin Camera | 1080P/25 fps, FOV H:110°, IR night-vision, color/BW switch |
Video Compression | H.265 / H.264 |
Storage | Single TF card, up to 512 GB, Class 10 |
Operating Voltage | DC 9-36 V |
G-Sensor | 3-axis SC7A20H |
Operating Temperature | –20 °C to +70 °C (–4 °F to 158 °F) |
Dimensions | 116 mm × 66 mm × 38 mm |
