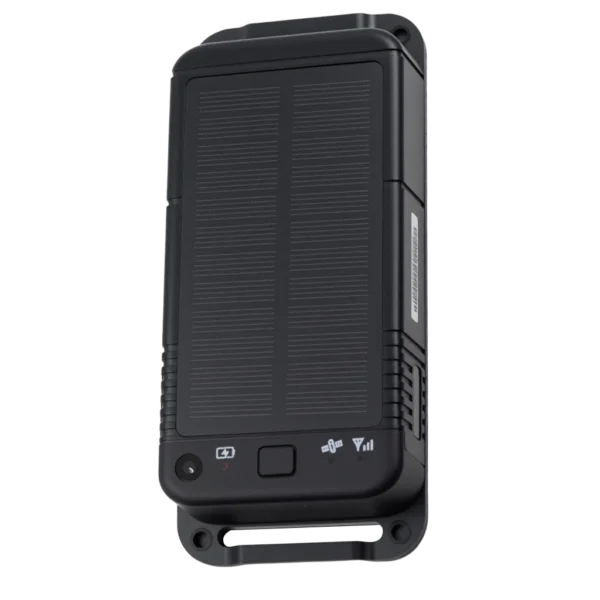

GAT30 Solar: Industrial 4G GPS Tracker for Advanced Asset & Container Management
The GAT30 Solar is a rugged 4G GPS tracker for unpowered asset management. Featuring autonomous solar charging, it delivers reliable tracking for containers & trailers.

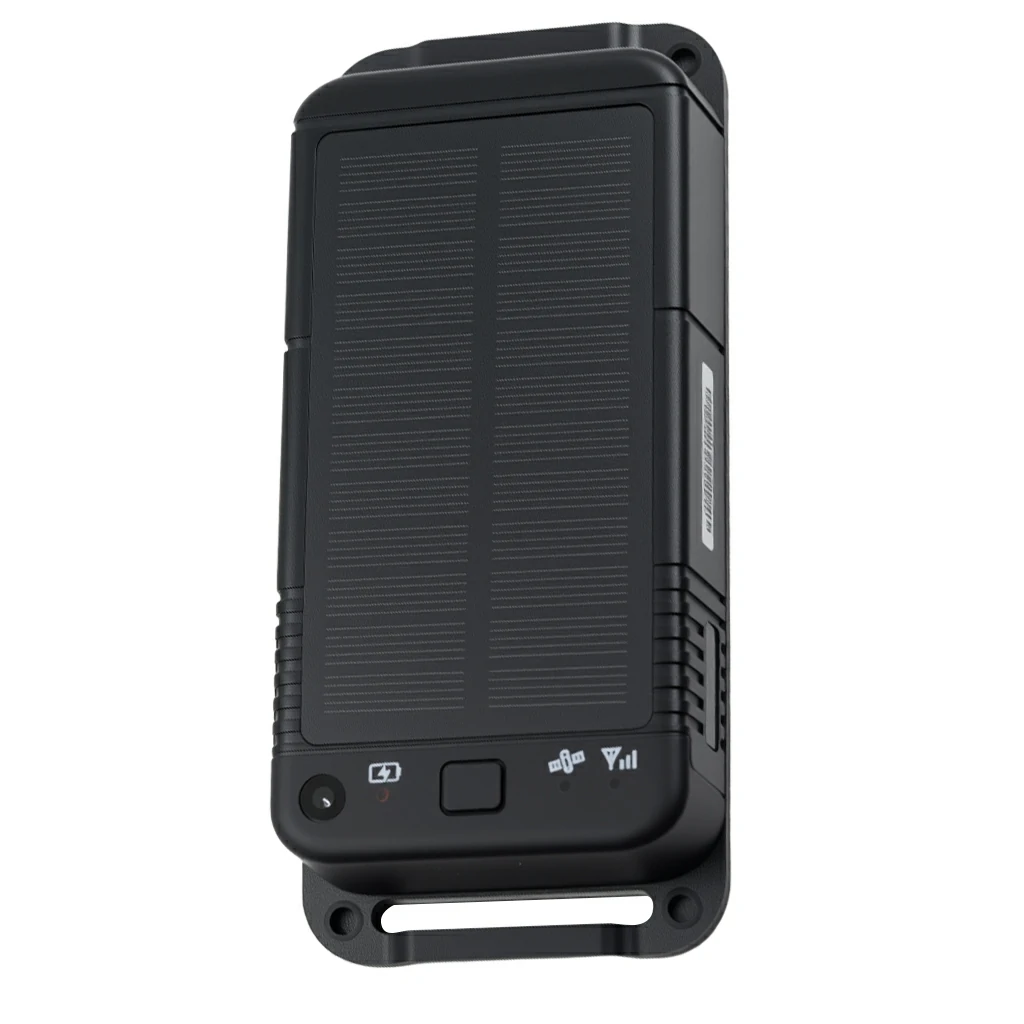

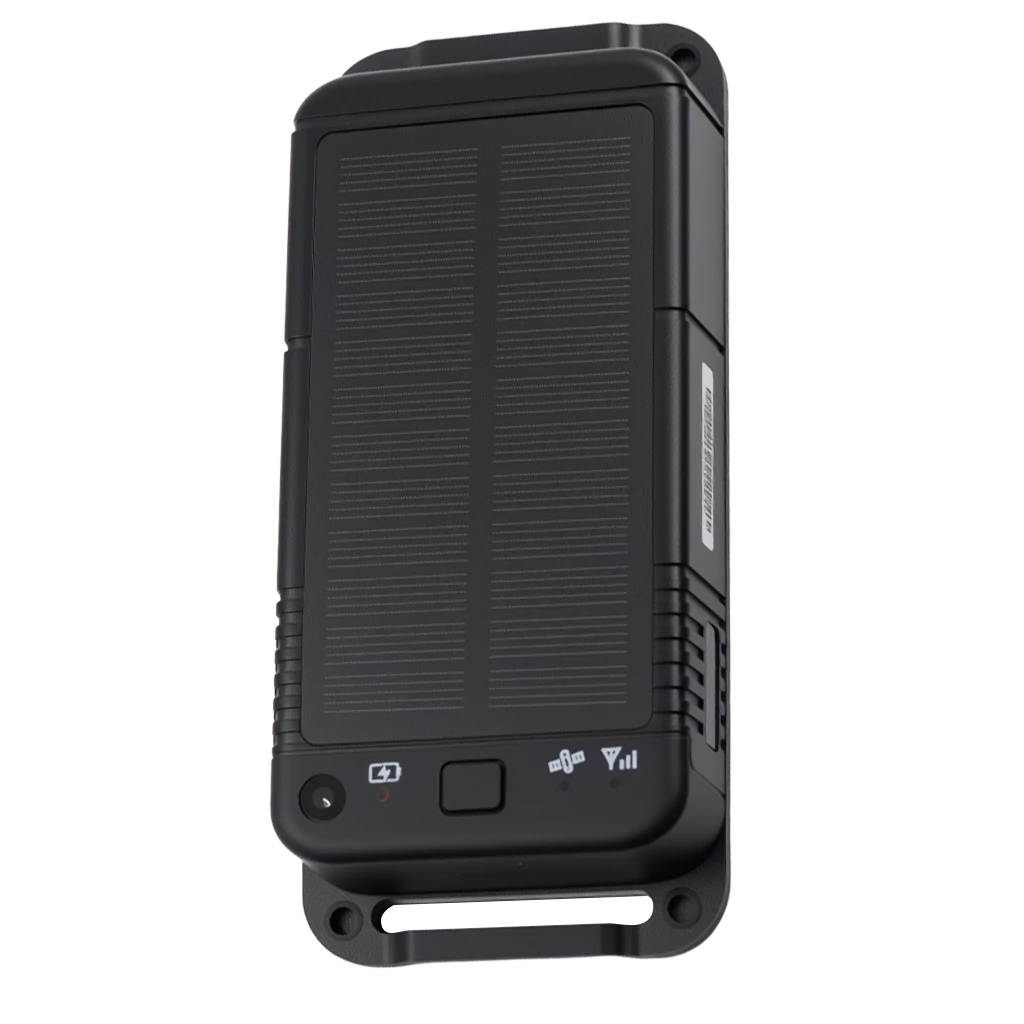

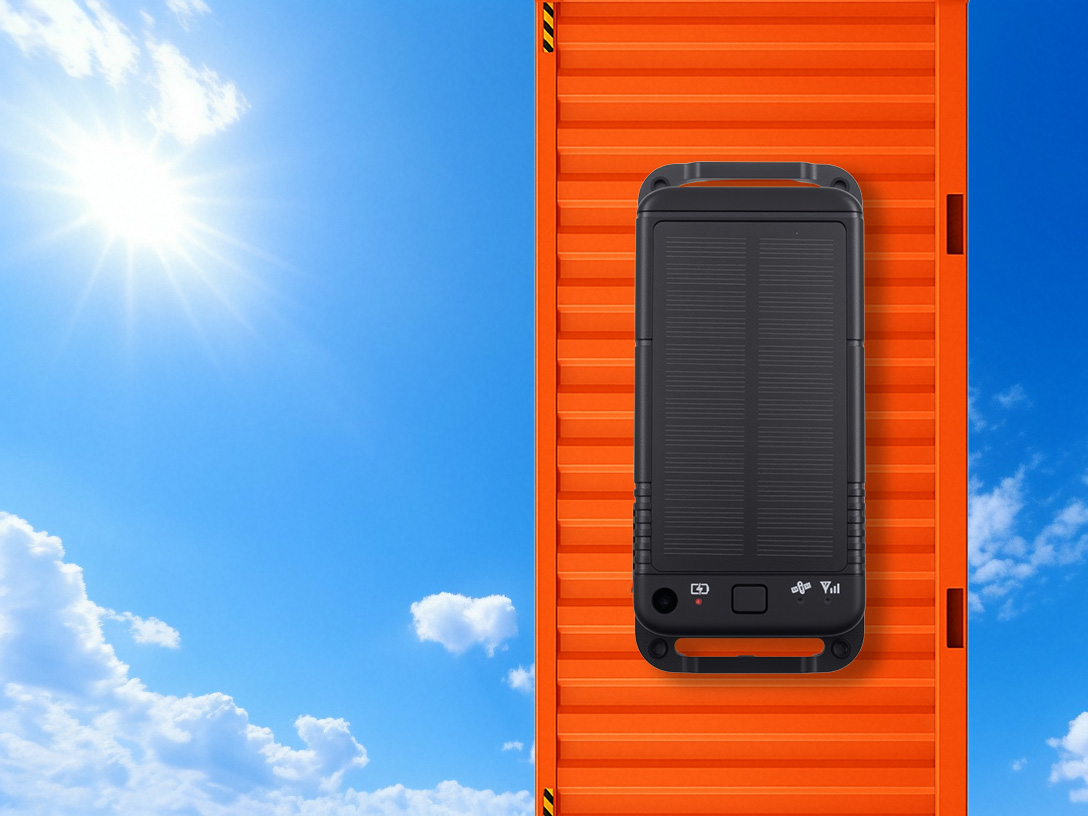

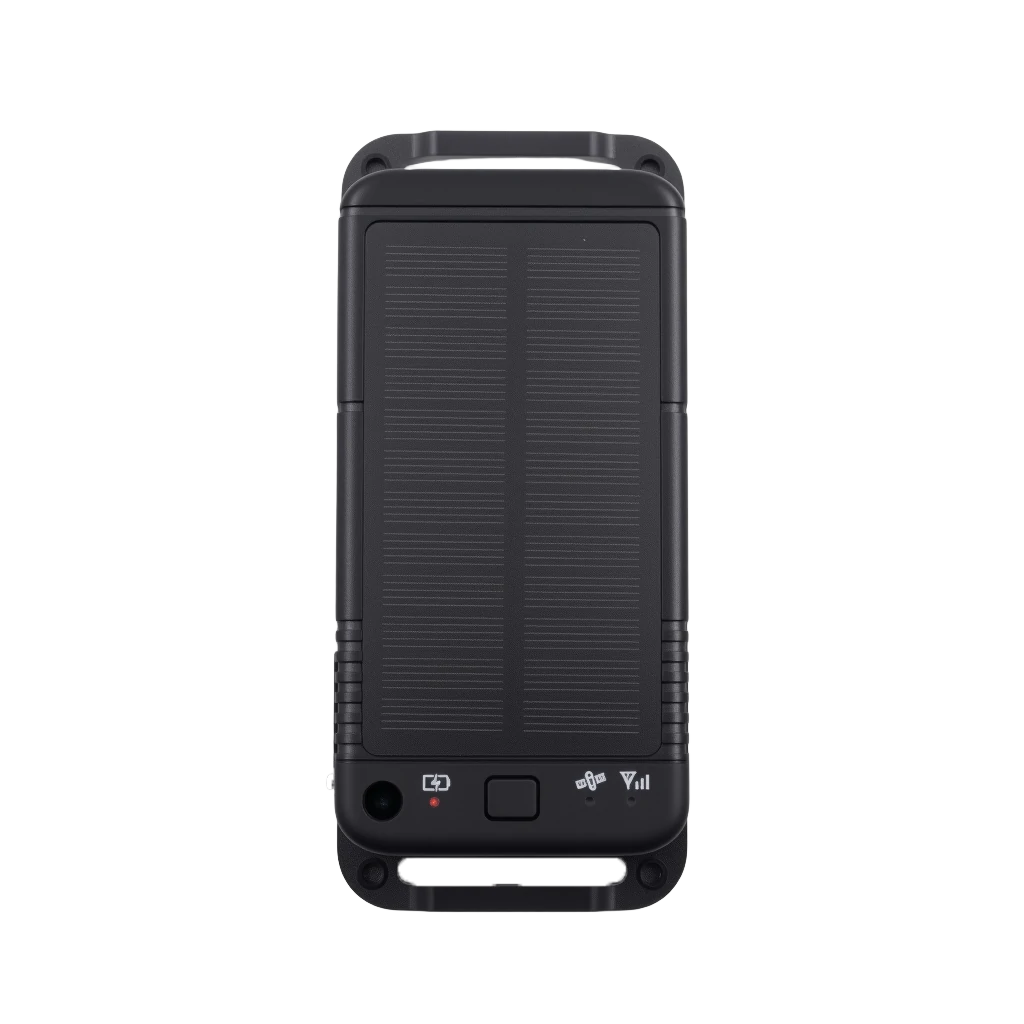

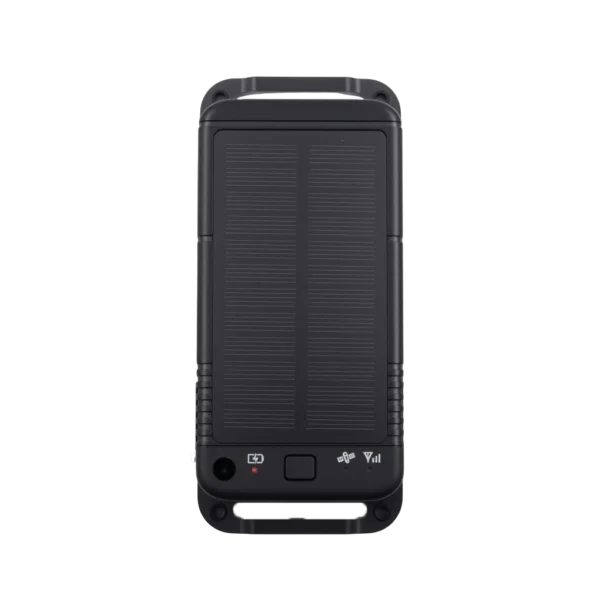

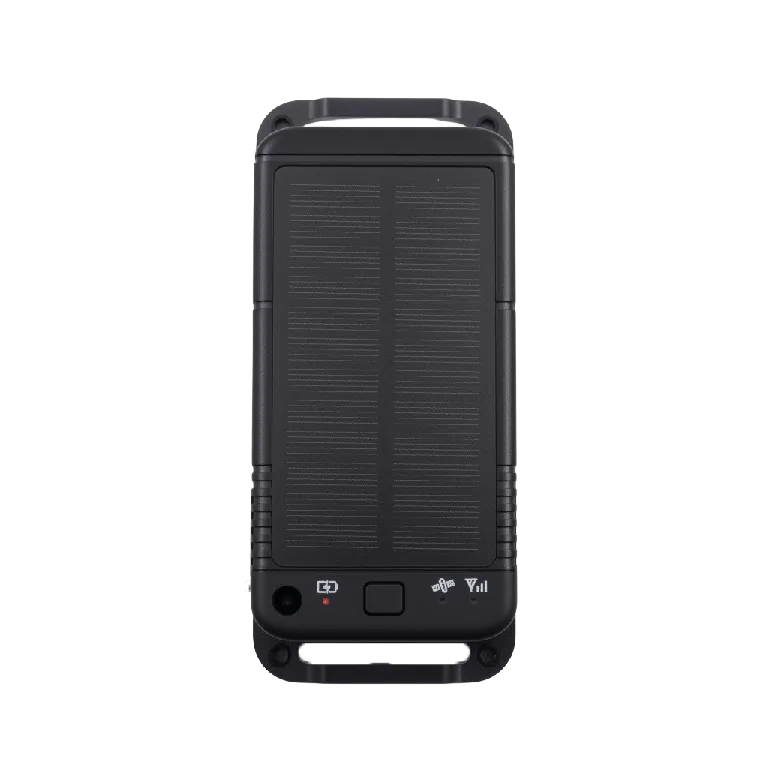

Autonomous Solar Power Supply
Eliminates the need for manual charging. The high-efficiency solar panel ensures continuous operation, drastically reducing maintenance costs for your fleet.

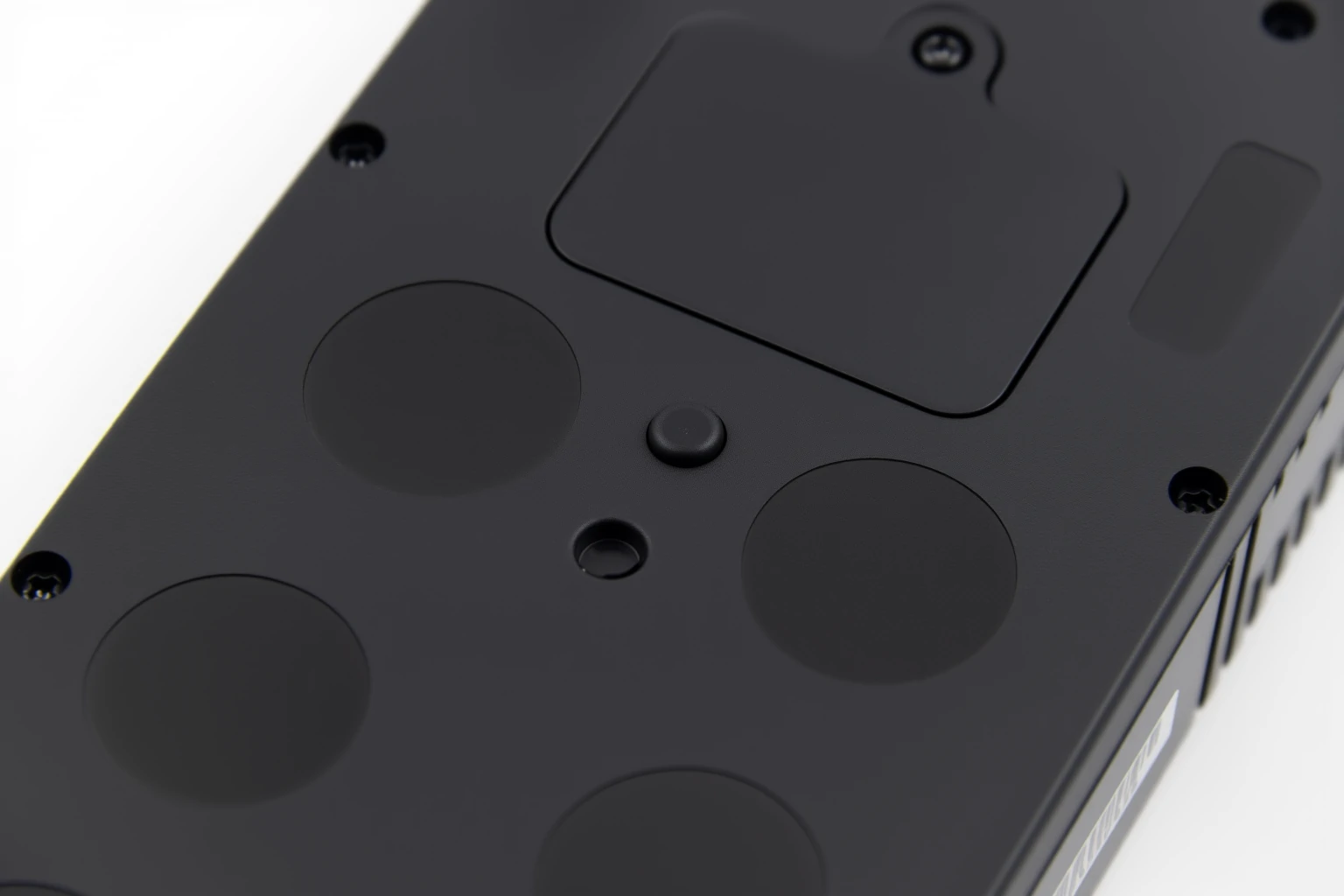

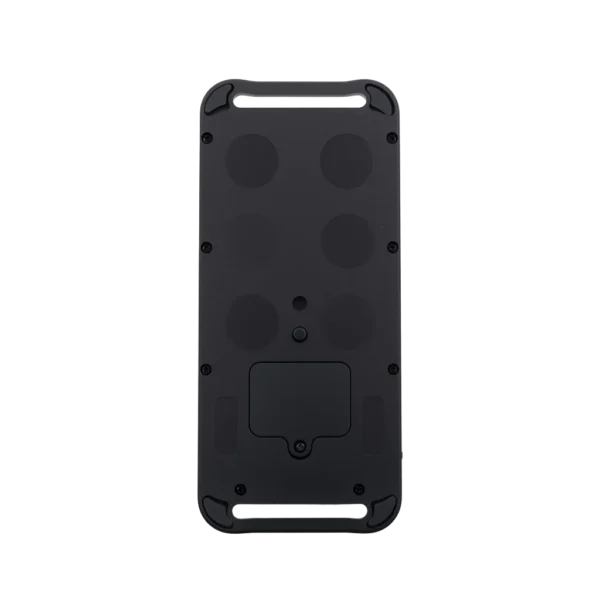

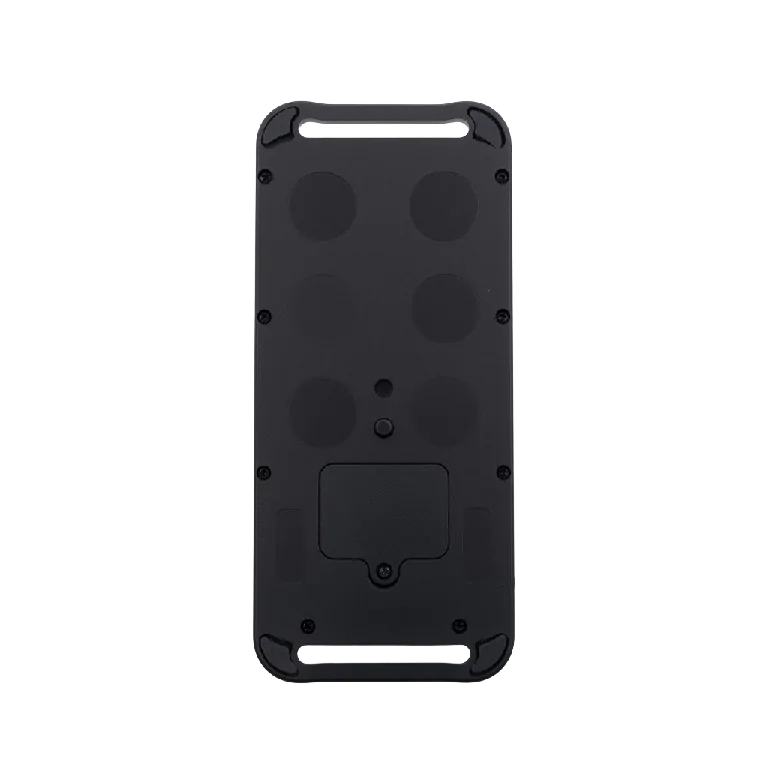

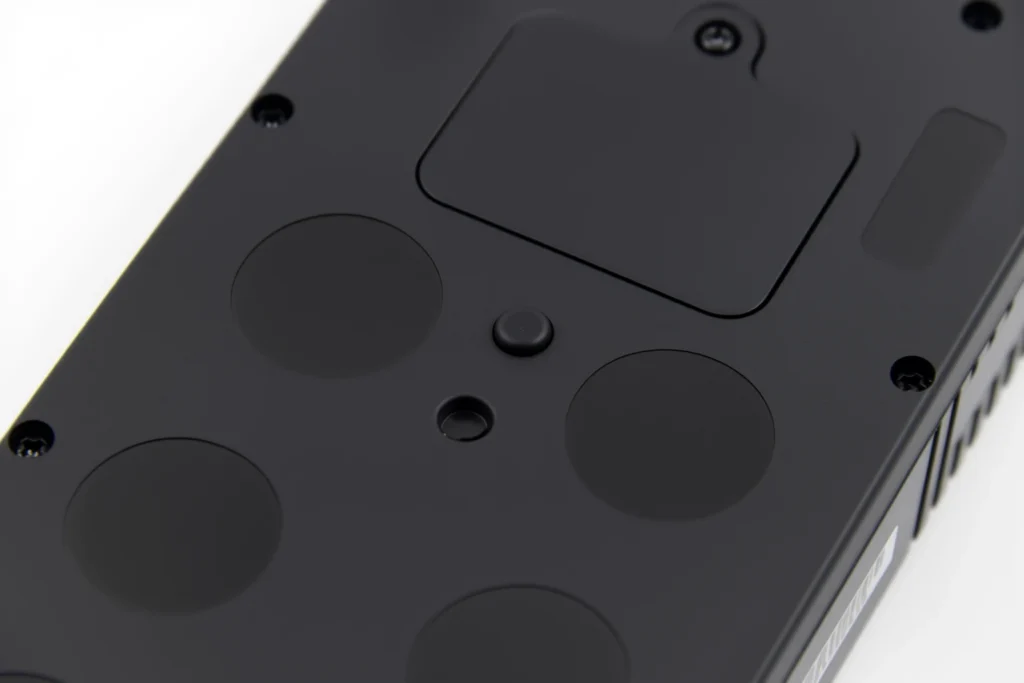

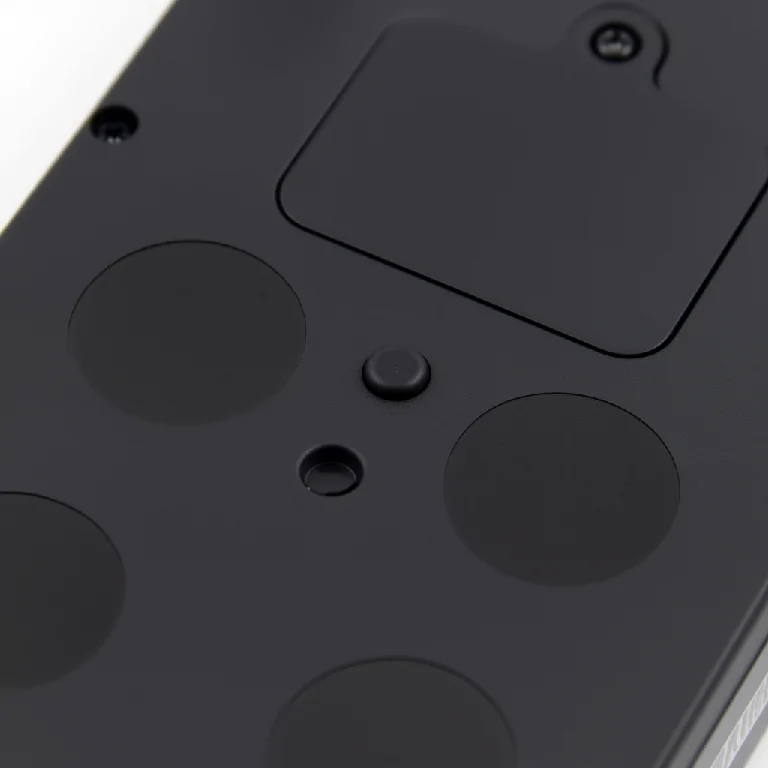

Rugged IP67 & Magnetic Mount
Built to withstand harsh outdoor conditions with an IP67 rating. Powerful built-in magnets allow for instant, secure installation on any metal surface.

Adaptive Multi-Mode Tracking
Flexibly switch between real-time tracking, scheduled reporting, and on-demand location modes to perfectly balance data freshness with power consumption.

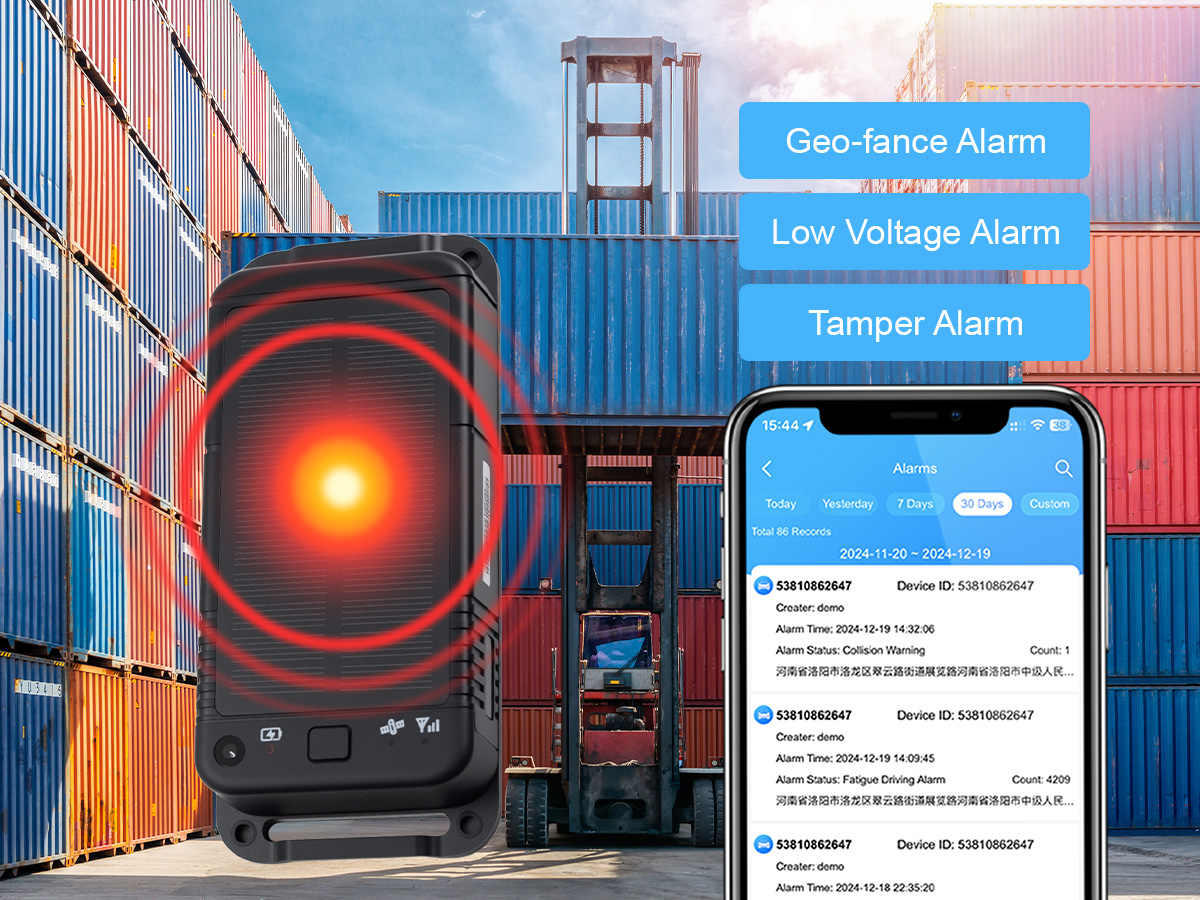

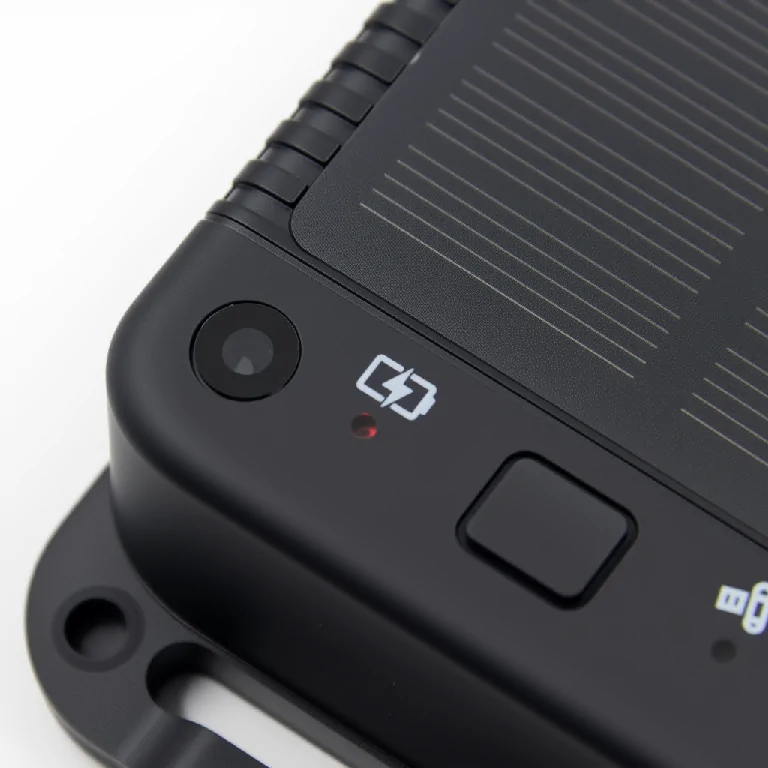

Proactive Security & Tamper Alerts
Safeguard your assets with instant alerts for unauthorized removal (light sensor) and unexpected movement (vibration sensor), enabling immediate response.
Technical Specifications
Specification | GAT30 Solar |
Network | 4G LTE Cat-1 |

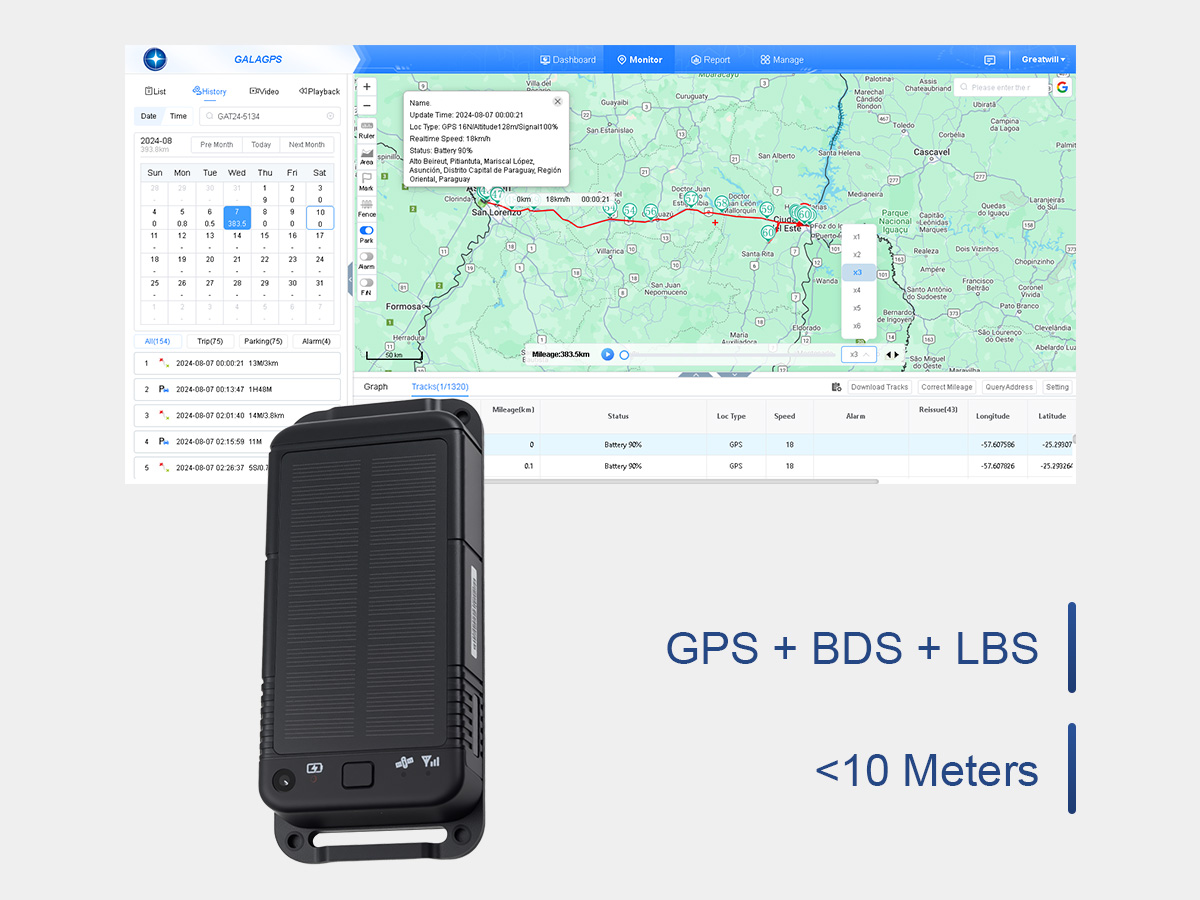

Positioning System | GPS + BDS + LBS |
Battery Capacity | 7500mAh Rechargeable Li-ion |
Solar Charging Current |
Approx. 90mA @6V
|
IP Rating | IP67 Waterproof & Dustproof |
Operating Temperature |
-25℃ to +75℃ (-13°F to 167°F)
|
Standby Current | Approx. 1.8mA – 2mA |
Dimensions (L x W x H) |
157mm x 70mm x 26.5mm
|
Weight | Approx. 310g |
Mounting |
Built-in Strong Magnets
|
Data Storage | 1,000 data points (offline buffer) |
Key Alerts |
Tamper (Light Sensor), Vibration
|
