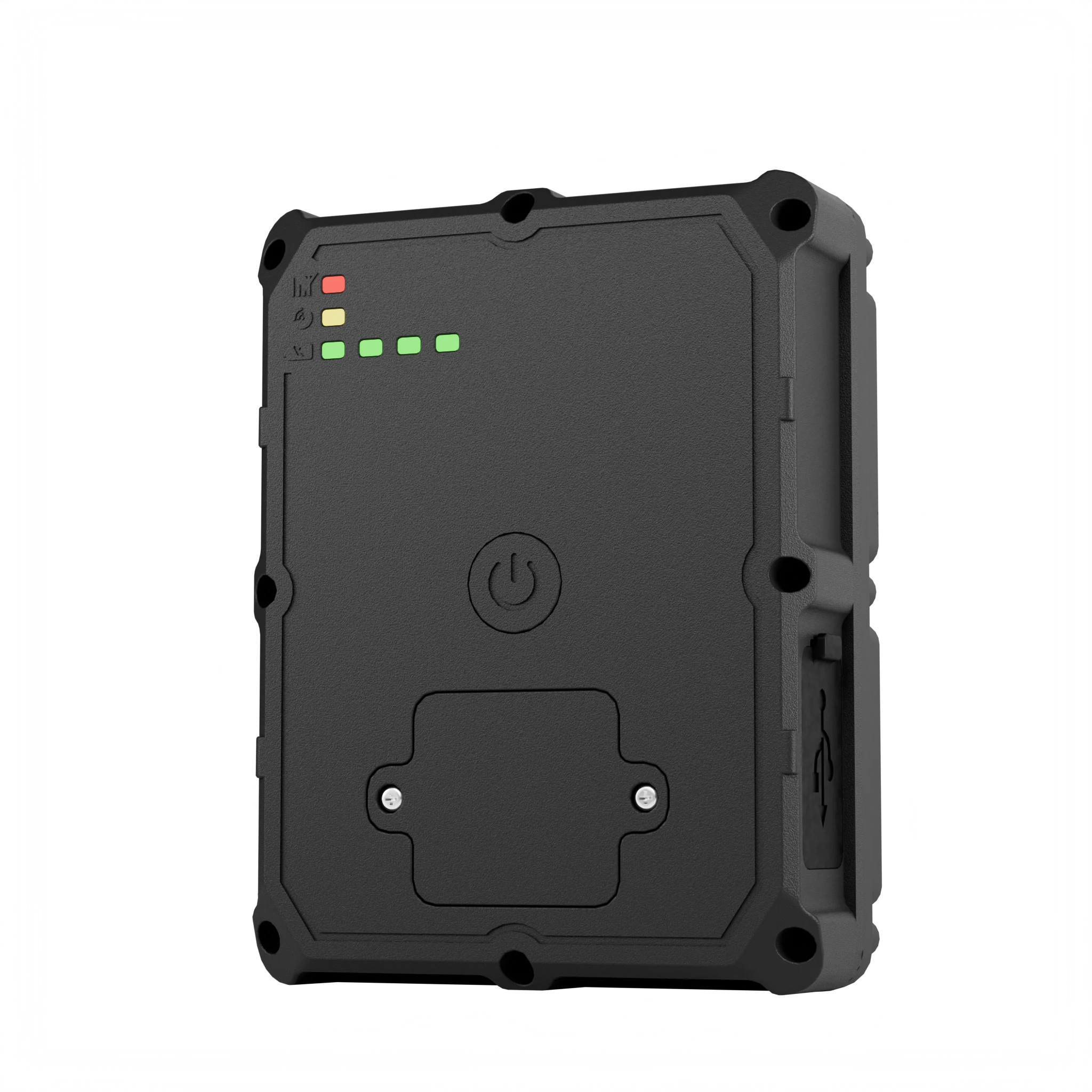

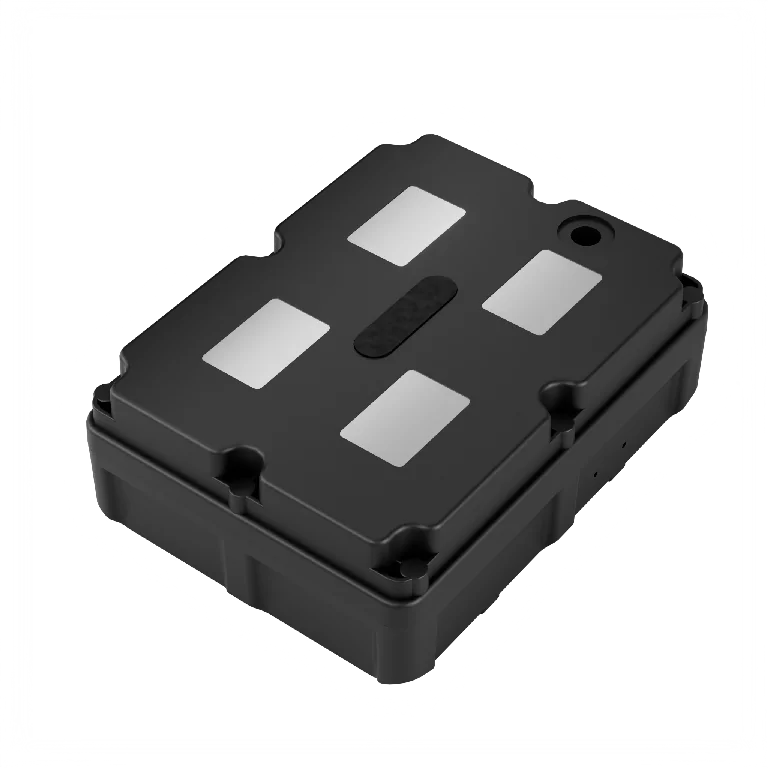

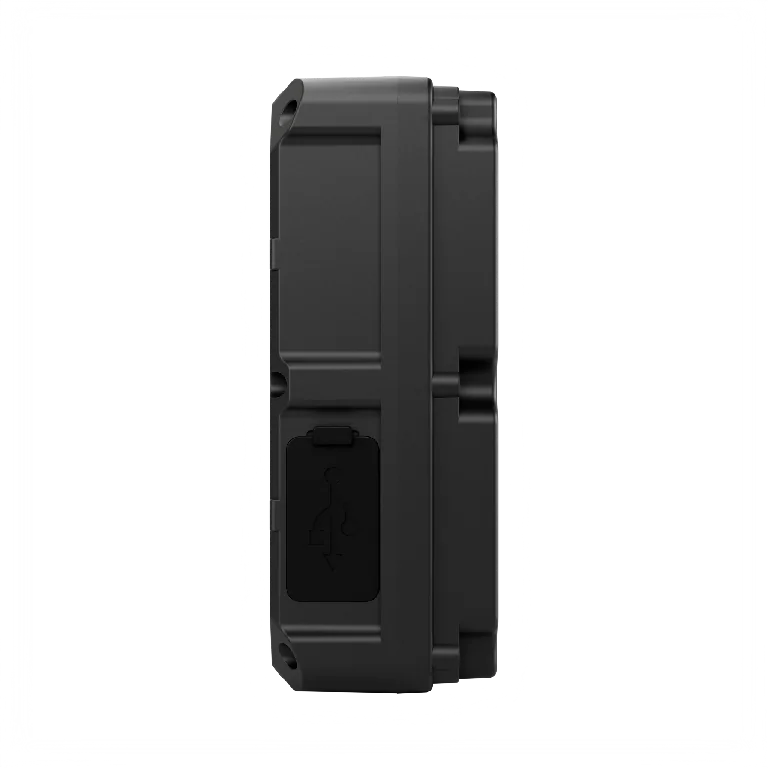

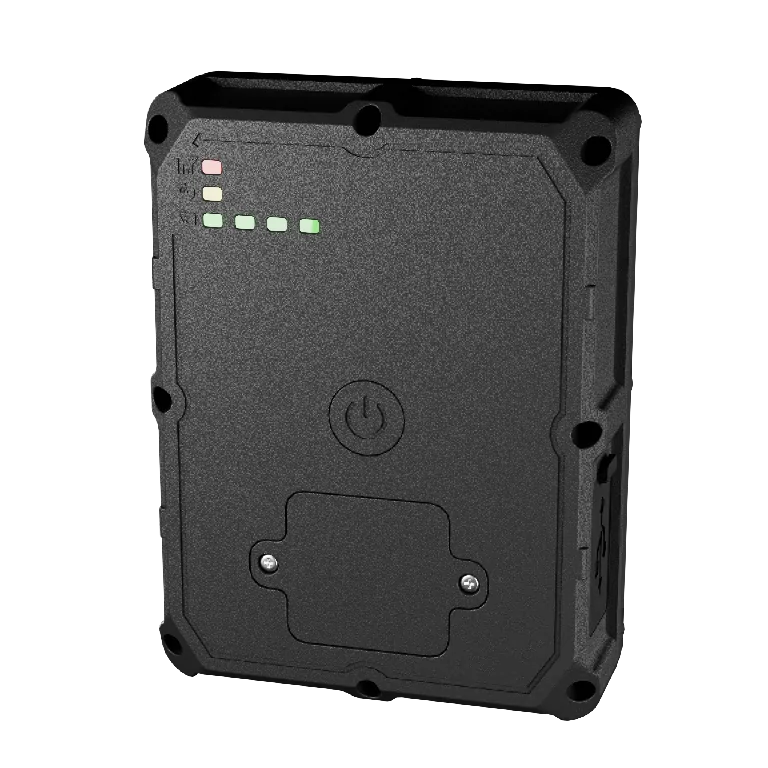

4G Asset GPS Locator GAT24 | GREAT WILL
Great Will GAT24 wireless GPS tracker is a high-capacity wireless charging device for vehicle tracking and vehicle SOS alarm. With strong magnetic, hidden installation, low power consumption, long standby time.

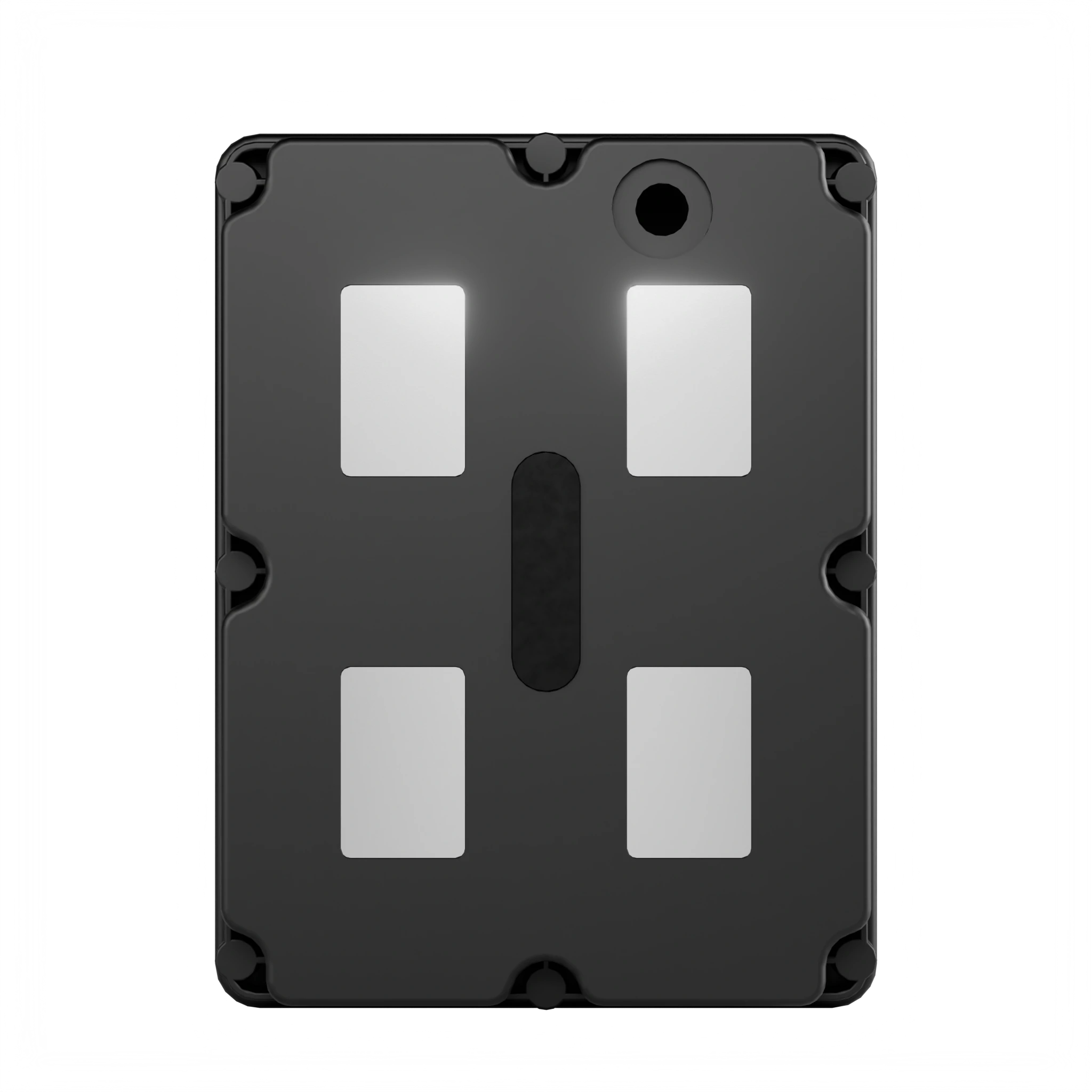

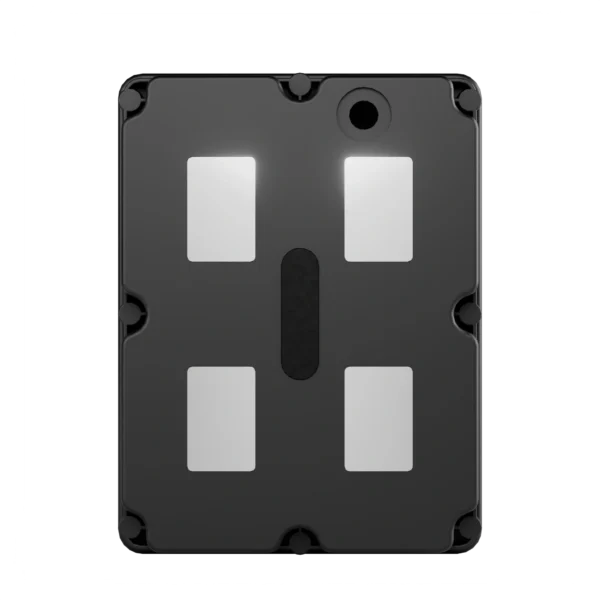

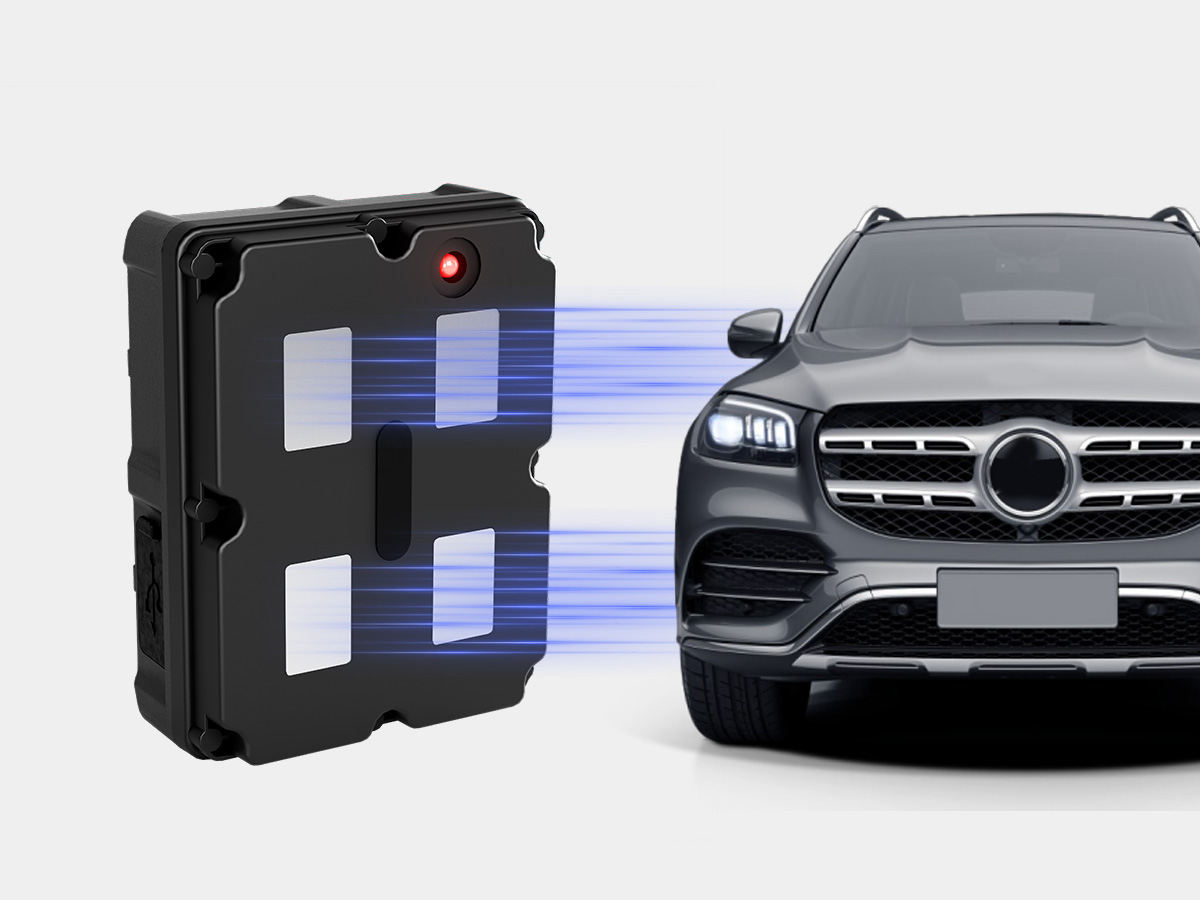

- Strong Magnetic Field Super Strong Adsorption
- Wireless Installation Free
- Low Power Consumption with Multiple Operating Modes
- Multi-Positioning modules with Beidou, GPS, AGPS
Strong magnetism, no installation required—GAT24
The GAT24 is a 4G full-network vehicle-mounted positioning terminal designed specifically for the Internet of Vehicles. It boasts ultra-low power consumption (800uA in sleep mode, 24mA in normal mode (with scheduled reporting), IP67 waterproofing, and multiple alarms to protect your property.
Multiple Alerts
GAT24 wireless vehicle GPS locator provides instant alerts for abnormal events such as overspeeding/explosion alarms/SOS alarms. Its multiple alarm functions enable instant response to abnormal events, providing users with support for understanding vehicle dynamics at the first time.

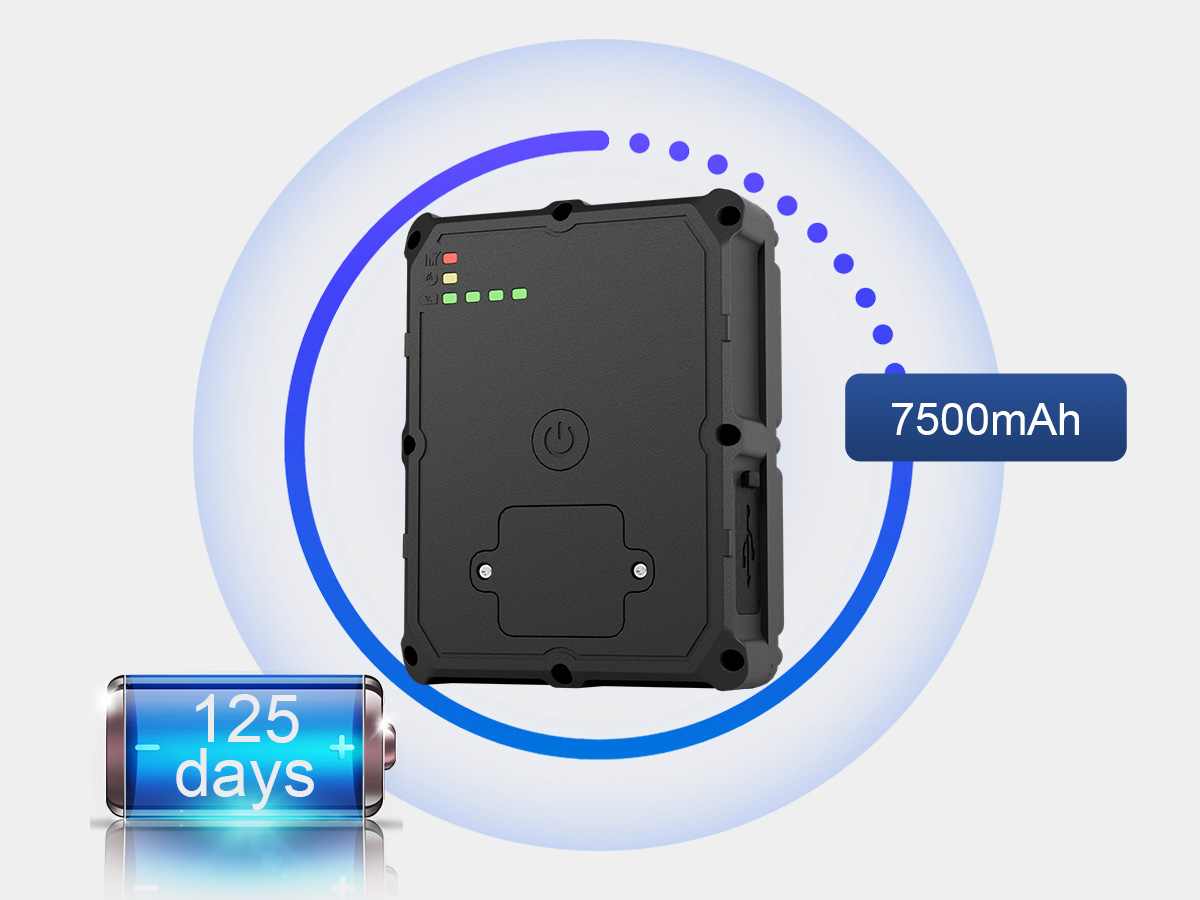

Rechargable Battery
Built-in 7500mA large-capacity rechargeable battery. To ensure that the locator can continue to work stably, the GAT24 wireless vehicle GPS locator is equipped with a high-performance rechargeable battery, which solves users' concerns about the device's battery life.

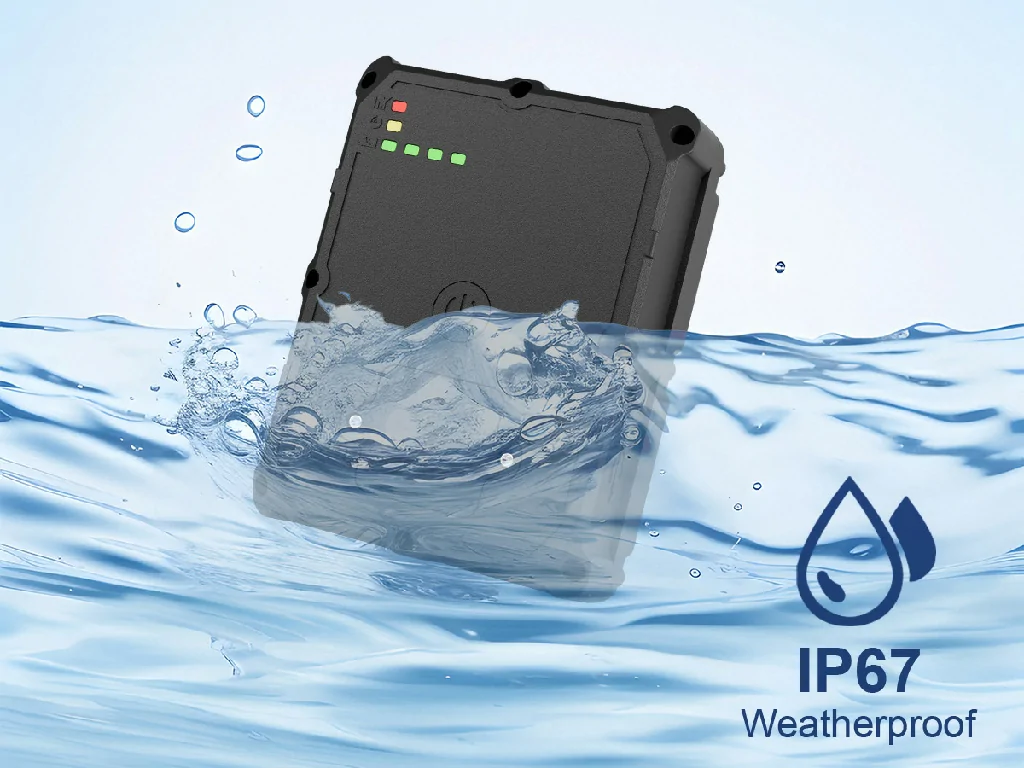

Protection Against Water And Dust For Outdoor Integrations
Use it anywhere, as the IP67-rated casing provides water and dust resistance for usage in harsh conditions.
Technical Specifications
| Specification | GAT24 |
| Dimensions | 95 x 72 x 35 mm |
| Weight | 300g |
| Standby Battery | Rechargeable 7500mAh / 3.7V Lithium Battery |
| Ingress Protection |
IP67
|
| Working Temperature | -20°C to +75°C (-4°F to +167°F) |
| Installation |
Strong Magnetic Mount
|
| Network Frequency | 4G LTE Cat-1 |
| LTE Bands |
B1/B2/B3/B4/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41/B66
|
| Positioning Way | GPS, GLONASS, GALILEO, BEIDOU, AGPS, QZSS, SBAS |
| Location Accuracy |
< 2.0m CEP
|
| Tracking Sensitivity | -160dBm |
| Power Consumption |
< 800uA (Online Sleep Mode), < 24mA (Normal Mode)
|

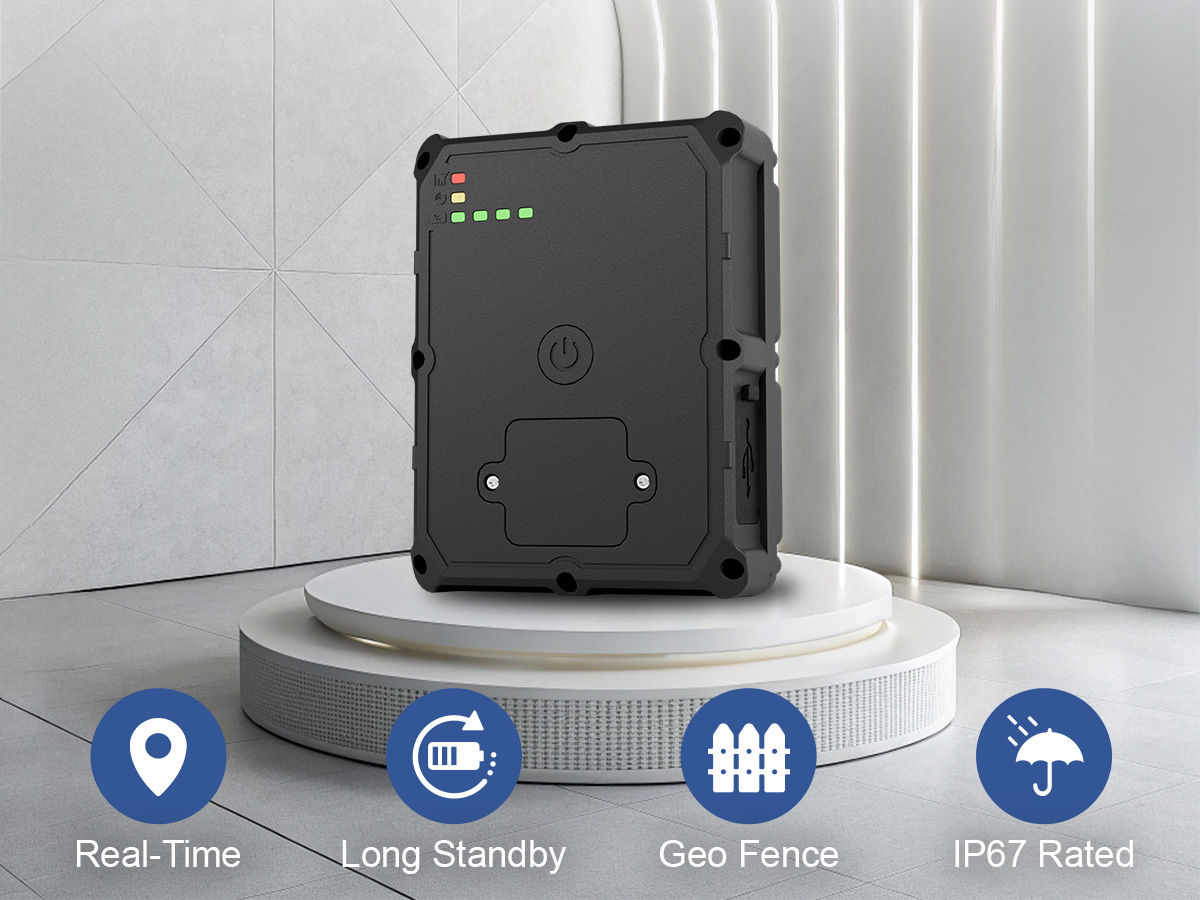

Main Features
Real-time Tracking
Ultra-low Power

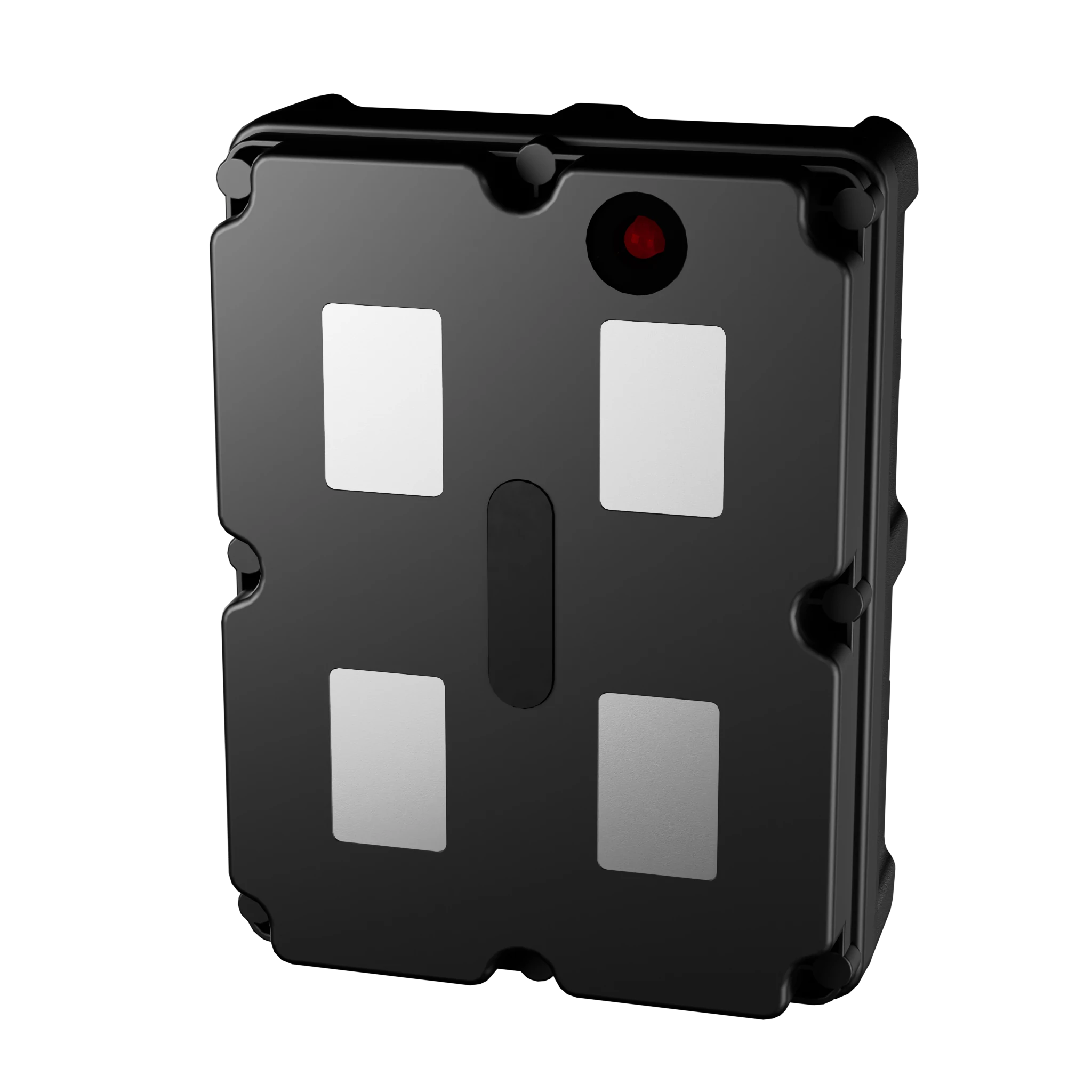

Strong Magnet

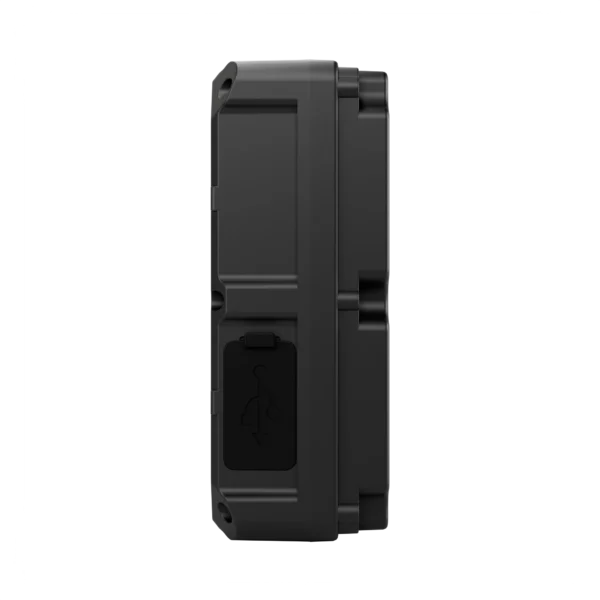

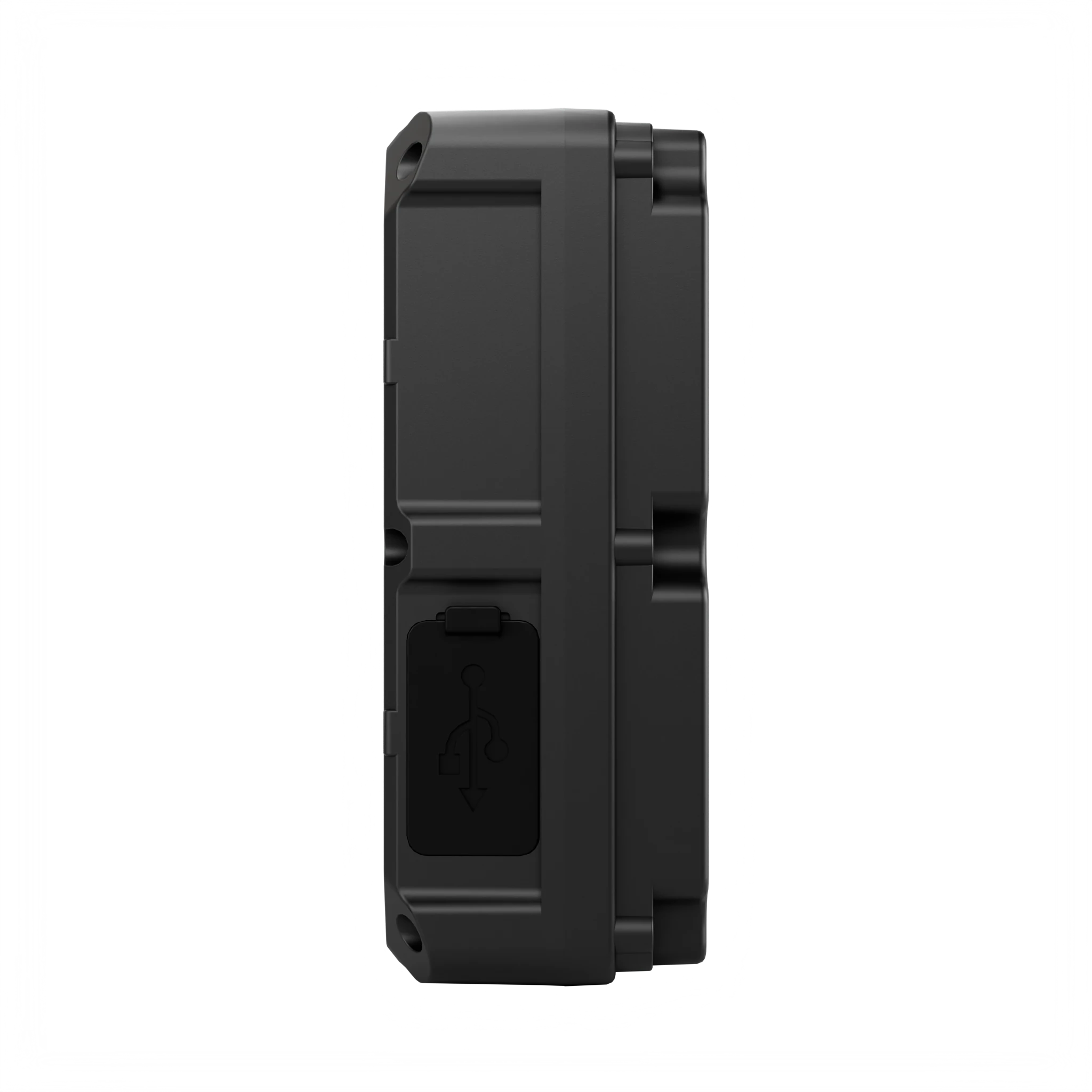

Type-C Interface
SOS Panic Button
GAT24 GPS Tracker Applicable Scenarios
Long-haul Freight Monitoring
Long-haul Freight Monitoring
Click HereFleet Dispatch Management
Fleet Dispatch Management
Click HereCar Rental Management
Car Rental Management
Click HereBulk GPS Trackers Wholesale, Ready to Ship
GREAT-WILL specializes in the R&D and wholesale of GPS tracking devices. We maintain ample stock of market-proven models like the GAT24 to fulfill rapid orders. We support OEM/ODM customization, ensuring the GAT24's superior quality and exceptional battery life meet your needs, whether for your own business or for resale.
After-sales service and Warranty
- Provide after-sales technical support and product testing
- Continuously adjust products to suit local conditions and vehicles
- Warranty period up to 3 years
Delivery Time and Shipping
- Sample delivery time is approximately 3-5 days.
- Large-volume orders take over 7 days.
- The device/platform software/SIM/IoT card undergo engineering inspection and testing before packaging and shipment.
- Multiple shipping methods supported.
Why choose GAT24 4G Magnetic GPS Tracker?
- Multiple operating modes enable low-power operation. In online sleep mode, the device consumes only 800uA (approximately 0.0008A), equivalent to 1/10 the standby power of typical trackers. The device automatically enters sleep mode when idle, waking up briefly to report its location only at preset intervals (e.g., every hour), significantly reducing power consumption. In normal scheduled reporting mode, the device consumes 24mA. Compared to similar products that typically consume 50% more power in high-frequency mode, the GAT24 can maintain battery life for days in intensive monitoring scenarios, meeting the needs of fleet scheduling and real-time management of rental vehicles.
- The 7500mAh/3.7V lithium battery eliminates the need for frequent disassembly and charging. Compared to disposable battery trackers, the 3.7V lithium battery supports rechargeable batteries. This allows for rapid recharge after vehicle return, ensuring efficient operation in high-use scenarios such as rental companies and fleet management. Combined with the existing battery indicator, users can check the remaining battery level via the app and plan charging times in advance.
- The built-in light sensor is sensitive to changes in ambient light and immediately triggers an anti-tamper alarm if any unauthorized disassembly (such as removing a cover or prying open the casing) is attempted. The device can be discreetly affixed to a light-sheltered location, such as the vehicle chassis or interior crevices. It will immediately sound an alarm if moved or exposed to light, making it suitable for private car theft prevention and mortgage vehicle monitoring.
- GAT24 wireless GPS tracker achieves real-time positioning accuracy of less than 2 meters, reaching professional-grade GNSS positioning standards. Centimeter-level positioning accuracy enables precise tracking and management.
